LED Lighting

LED Retrofit T8 Tube

PDF Version

T-Senso

T-Senso
T-Senso
T-Senso

Specifications & Features

  • Extruded Aluminum housing with highly efficient PC Opal Diffuser
  • High energy saving Vis a Vis Traditional fluorescent Tube-70% compared to standard 2ft & 4ft T8 or,T12 FTL
  • Detected range at height of 5 - 8mtr with 120 Deg angle.
  • Dim to 10% rated power within Interval time < 3 Min thr PIR Sensor
  • Over load, over voltage, short circuit and reverse polarity protection
  • Built-in constant current driver with > 95% power factor
  • More than 85% driver efficiency with < 20% Current THD
  • Equipped with 2.5KV Surge Protection
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection

    • Applications

  • Offices
  • Institutional
  • Factories
  • Warehouse

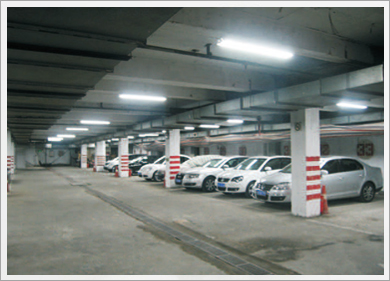

  • Parking
  • Corridors

    • Installation & Maintenance

  • Retrofit solution to standard G13 medium bi-pin base 2ft & 4ft T8 or,T12 Tube
  • Power Supply should be disconnected before service

    • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/STL-T8-LED001065 T-Senso Retrofit T8 LED Tube 10/CW L600 10 230 0.045 6500 900
    VL/STL-T8-LED002065 T-Senso Retrofit T8 LED Tube 20/CW L1200 20 230 0.090 6500 1800
    Lamp Enclosed Rated

    * XX Also available in 3000K & 4000K CCTs
