LANDSCAPE LIGHTING

AUCUBA

LED Panel Edgelit
Aucuba
 LED Panel Edgelit

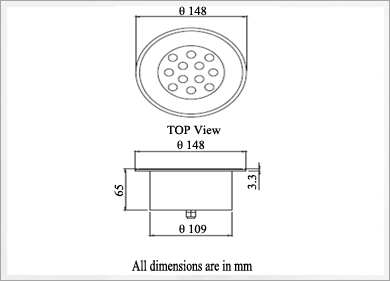

Dimension Details
 LED Panel Edgelit
Application

Description

Often in ground lights are used for illuminating pathways , sidewalks and gardens and they offer several benefits over ground fixtures They blend in landscape better because these luminaires are buried in the ground and sit flush with the yard. Acuba illuminaites garden,yards and patios beautifully and accentuates the surrounding.

Specifications & Features

  • Aucuba is inground luminaire, available in 9W LED system.
  • Luminaire housing aluminum with SS ring -grey powder coated with Clear Toughened Glass.
  • Luminaire comes with suitable mounting box.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 3000K available & CRI >70.
  • The surge protection of the luminaire is 4KV inbuilt.
  • Operating voltage 140V -270V & THD < 10% & Pf >0.9
  • The luminaire Electrical Safety Class I & IP65.
  • Luminaire mount on surface.
  • Luminaire is provided with all accessories with easy installation & serviceability.
  • Installation & Maintenance

  • Remove Plastic Casing,keepinground ,pack outer dia with white Cement upto surface level, dry it minimum six hours,
  • Connect input Wire to LEN connector, insert the Luminaire in the casing .
  • Driver replacement: External driver /Remote driver easily replace
  • Applications

  • Landscapes
  • Parks
  • Pathways
  • Gardens
  • Walkways
  • Compliance

  • IP 65
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD Power Factor Weight (Kg)
    VLB6026 VLBI/614/09/30/NBK/V0 9W 3000K 0.042A mps < 10% >0.9 0.76kg
    Lamp Enclosed Rated
