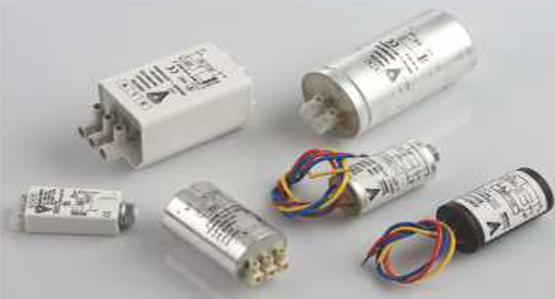

Ignitor

Accessories

BALLAST CLASS ‘B’

Features

  • Compact Design
  • Zero Watts Loss and No Internal Temperature Rise
  • Digital Intelligence
  • Wide Operating Range
  • Part No Type Wattage Voltage Termination Dimension Pulse magnitude Max Lead
    Capacitance (pf)
    Max case
    Temp (*C)
    PXA100255 Super Imposed 35 - 150W 240V Terminal Block 78 x 39 x 36 3.5 - 4 KV 100 105
    Mci6 Semi Parallel 35 - 400W 240V Terminal Block 50 x 25 x 17 3 - 4.5 KV 1000 105
    PXE100255 Super Imposed 35 -450W 240V Terminal Block 71 x 33 x 31 3 - 4.5 KV 100 105
    BS740G Impulser 70 - 400W 240V Terminal Block 52 x 18 x 25 3 - 4.5 KV 200 85
    BCLC47 Impulser 70 - 400W 240V Wire Dia 30 mm 3.8 - 4.5 KV 3000 85
    BC 7040 Super Imposed 70 - 400W 240V Terminal Block Dia 39 mm 3.5 - 4.5 KV 100 90
    PB404K255 Impulser 250 - 400W 240V Terminal Block Dia 39 mm 3 - 4.5 KV 3000 85
    PXE000255 Super Imposed 600 - 1000W 240V Terminal Block 90 x 49 x 50 3 - 5 KV 100 105
    PT150K445 Super Imposed 1000 - 2000W 440V Terminal Block Dia 51 mm 5 - 6 KV 200 90
    PBA200485 Two Wire 1000 - 2000W 440V Terminal Block Dia 51 mm 1 - 1.5 KV 10000 85
    Lamp Enclosed Rated
