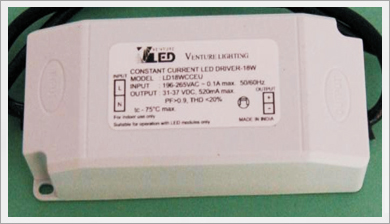

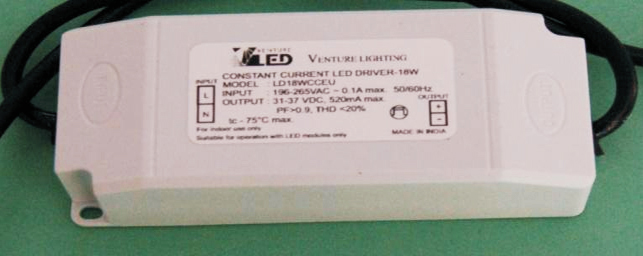

VENTURE 15-18W LED DRIVER

VENTURE 15-18W LED DRIVER

Features

  • IS 15885(Pt2/Sec13):2012 certified
  • Constant current output
  • Active power factor correction
  • Reliable & consistent performance
  • Operating temperature -40o c to 70o c
  • 4.5KV Surge protection

    •

  • Protections: OVP/SCP/OTP
  • Free air convection cooling
  • Thermal conductive Bio Plastic housing
  • Standard Warranty - 1 Year
  • RoHS compliant
  • Net Weight 0.076kg

    • Technical Specification

    Specification Parameter VLD15WCCEU VLD18WCCEU
    INPUT VOLTAGE RANGE 196 ~ 265VAC 196 ~ 265VAC
    INPUT FREQUENCY 50/60Hz 50/60Hz
    INPUT POWER FACTOR PF>0.97 @ 180VAC, PF>0.97@ 200VAC, PF>0.95 @240VAC, PF>0.94@265VAC at full load PF>0.97 @ 180VAC, PF>0.97@ 200VAC, PF>0.95 @240VAC, PF>0.94@265VAC at full load
    INPUT TOTAL HARMONIC DISTORTION < 20% < 20%
    INPUT EFFICIENCY (Typ.) >85% >85%
    INPUT AC CURRENT (Typ.) 0.06@240 0.07@240
    OUTPUT DC VOLTAGE 34-40 31-37
    OUTPUT RATED CURRENT 0.39A max 0.52A max
    OUTPUT CURRENT RANGE 0.36-0.37 0.45 -0.48
    OUTPUT RATED POWER 15W 18W
    OUTPUT VOLTAGE TOLERANCE 37.80-38.00 33.20-33.30
    STANDARDS COMPLIANCE STANDARD IS 15885(Pt2/Sec 13):2012 IS 15885(Pt2/Sec 13):2012
    Lamp Enclosed Rated

    Mechanical Dimensions

    Mechanical Dimensions

    Dimensions (L×W×H): 105X45X28MM

    PDF Version

    VENTURE 24-30W LED DRIVER

    VENTURE 15-18W LED DRIVER

    Features

  • Constant current output
  • Active power factor correction
  • Reliable & consistent performance
  • Operating temperature -40o c to 70o c
  • 8KV Surge protection
  • Protections: OVP/SCP/OTP

    •

  • Free air convection cooling
  • Thermal conductive Bio Plastic housing
  • Standard Warranty - 1 Year
  • RoHS compliant
  • Net Weight 0.153kg

    • Technical Specification

    Specification Parameter VLD24WCCUN-P VLD30WCCUN-P
    INPUT VOLTAGE RANGE 196 ~ 265VAC 196 ~ 265VAC
    INPUT FREQUENCY 50/60Hz 50/60Hz
    INPUT POWER FACTOR PF>0.99 @ 90VAC, PF>0.99@ 120VAC, PF>0.97 @240VAC, PF>0.95@265VAC at full load PF>0.99 @ 90VAC, PF>0.99@ 120VAC, PF>0.97 @240VAC, PF>0.95@265VAC at full load
    INPUT TOTAL HARMONIC DISTORTION < 10% < 10%
    INPUT EFFICIENCY (Typ.) >80% >80%
    INPUT AC CURRENT (Typ.) 0.10@240 0.14@240
    OUTPUT DC VOLTAGE 34-39 25-35
    OUTPUT RATED CURRENT 0.7A max 1.0A max
    OUTPUT CURRENT RANGE 0.68-0.70 1.23-1.25
    OUTPUT RATED POWER 24W 30W
    OUTPUT VOLTAGE TOLERANCE 31.04-31.40 31.05-31.30
    STANDARDS COMPLIANCE STANDARD NON BIS NON BIS
    Lamp Enclosed Rated

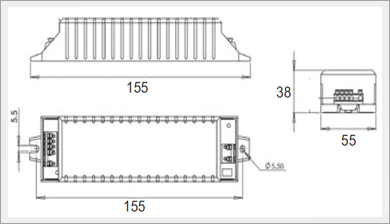

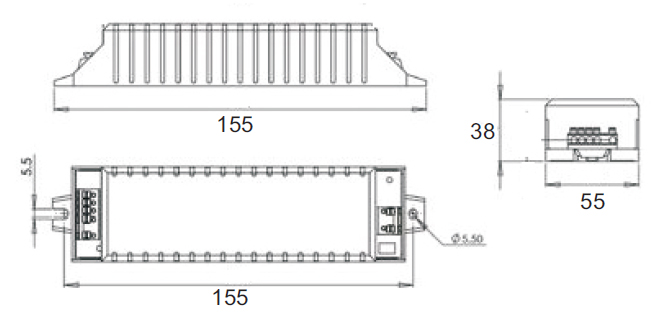

    Mechanical Dimensions

    Mechanical Dimensions

    Dimensions (L×W×H): 155X55X38MM

    PDF Version

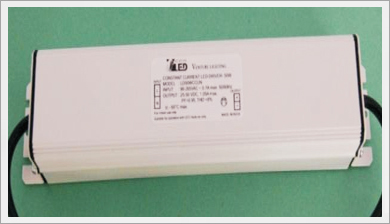

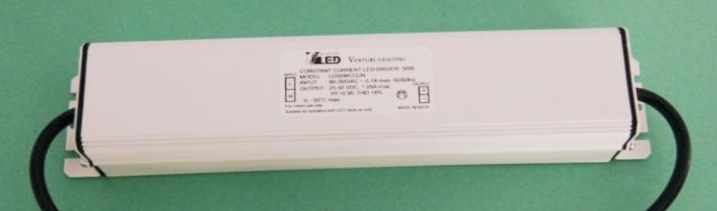

    VENTURE 30-55W LED DRIVER

    VENTURE 30-55W LED DRIVER

    Features

  • IS 15885(Part2/Sec13):2012 Certified.
  • Constant current output
  • Active power factor correction
  • Reliable & consistent performance
  • Operating temperature -40o c to 70o c
  • 8KV Surge protection
  • Protections: OVP/SCP/OTP

    •

  • Free air convection cooling
  • Thermal conductive Bio Plastic housing
  • Standard Warranty - 2 Year
  • RoHS compliant
  • Net Weight 0.28kg

    • Technical Specification

    MODEL MODEL LD30WCCUN LD40WCCUN LD50WCCUN LD55WCCUN LD45WCCUN LD33.5CCUN
    INPUT VOLTAGE RANGE 90 ~ 265VAC 90 ~ 265VAC 90 ~ 265VAC 90 ~ 265VAC 90 ~ 265VAC 90 ~ 265VAC
    INPUT FREQUENCY 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
    INPUT POWER FACTOR PF>0.99 @ 90VAC, PF>0.99@ 120VAC, PF>0.98 @240VAC, PF>0.97@265VAC at full load PF>0.99 @ 90VAC, PF>0.99@ 120VAC, PF>0.98 @240VAC, PF>0.97@265VAC at full load PF>0.99 @ 90VAC, PF>0.99@ 120VAC, PF>0.98 @240VAC, PF>0.97@265VAC at full load PF>0.99 @ 90VAC, PF>0.99@ 120VAC, PF>0.98 @240VAC, PF>0.97@265VAC at full load PF>0.99 @ 90VAC, PF>0.99@ 120VAC, PF>0.98 @240VAC, PF>0.97@265VAC at full load PF>0.99 @ 90VAC, PF>0.99@ 120VAC, PF>0.98 @240VAC, PF>0.97@265VAC at full load
    INPUT TOTAL HARMONIC DISTORTION < 10% < 10% < 10% < 10% < 10% < 10%
    INPUT EFFICIENCY (Typ.) >85% >85% >85% >85% >85% >85%
    INPUT AC CURRENT (Typ.) 0.14@240 0.19@240 0.24@240 0.26@240 0.20@240 0.16@240
    OUTPUT DC VOLTAGE 25-35 25-35 25-50 25-50 50-65 48-55
    OUTPUT RATED CURRENT 1A max 1.3A max 1.05A max 1.2A max 0.7A max 0.75A max
    OUTPUT CURRENT RANGE 0.93-0.95 1.23-1.25 1.01-1.02 1.0-1.08 0.70-0.709 0.68-0.69
    OUTPUT RATED POWER 30W 40W 50W 55W 45W 33.5W
    OUTPUT VOLTAGE TOLERANCE 31.03-31.09 32.4-32.5 49.5-49.6 49.7-50.0 58.9-59.2 48.2-48.5
    COMPLIANCE STANDARD COMPLIANCE STANDARD IS 15885 (pt2 /sec 13): 2012 IS 15885 (pt2 /sec 13): 2012 IS 15885 (pt2 /sec 13): 2012 IS 15885 (pt2 /sec 13): 2012 NON BIS NON BIS
    Lamp Enclosed Rated

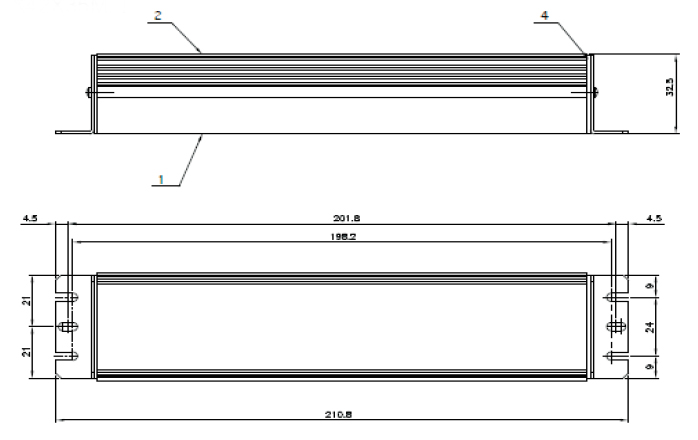

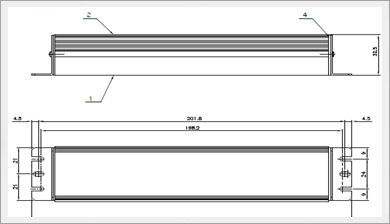

    Mechanical Dimensions

    Mechanical Dimensions

    Dimensions (L×W×H) 205X42X35MM
