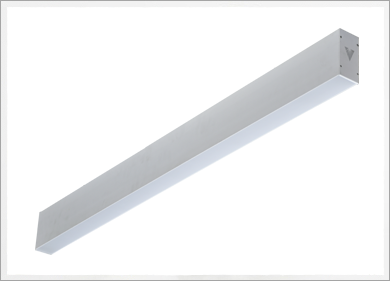

Cedar Standalone Surface
 LED Panel Edgelit

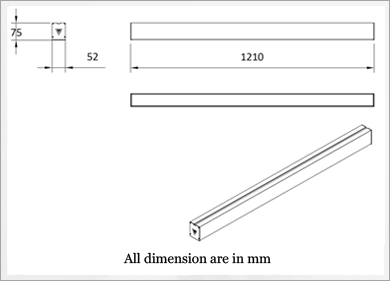

Dimension Details
 LED Panel Edgelit


Cedar Linear surface design complements modern urban indoor architecture lighting applications. Cedar Linear Surface delivers high performance and quality light output. Cedar surface luminaires offers unique and even gradient of light all through environment. Luminaire provides superior aesthetics with excellent finish with easy maintenance and high savings.

Specifications & Features

  • Cedar Surface is available in stand-alone in 4ft length in standard wattages 18W ,24W,28W in profile width of 52mm.
  • Luminaire are suitable for stand-alone in 18W, 24W, & 28W in 4ft length & customised length available on request.
  • Anodised aluminium body with excellent mechanical strength and durability.
  • High quality anti pc leakage profile design diffuser for high quality illumination across horizontal and vertical surface.
  • Excellent heat dissipation system through luminaire design.
  • Rated life of L70@50000 hours ensure sun interrupted long service life.
  • CRI >80 & THD <10 % and pf > 0.95 & CCT options of 5700K & 4000K.
  • Best in class lumen per watt-more light for less cost.
  • In-built electrical protections like overvoltage,shortcircuit,overload,miswiring for additional safety precautions.
  • With high efficiency lowpower lossdriver,systemis maintained at cooler temperature and leads to longer driverlife.
  • Driver duly wired up to the terminal block .
  • Available with option of multiwatt/ analog and DALI drivers
  • Product is design for easy servicing.
  • Standard available colour of luminaire will be white, black or grey can also be offered on request.
  • Installation & Maintenance

  • Surface mounting brackets are provided for easy mounting on true ceiling.
  • Access to driver is from side of the fixture.
  • Suitable for mounting on any surface ceiling. fixture.
  • Applications

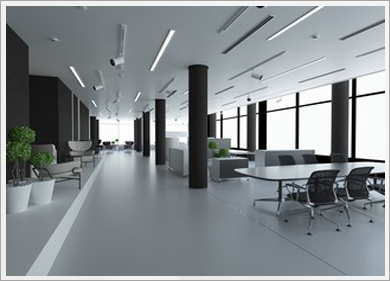

  • Open Modern Offices
  • Retail Stores
  • Green Buildings
  • Airport Terminals
  • Shopping Malls
  • Retail Shops
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp THD Power Factor Mains Current Weight (Kg)
    VLC1202 VLCS/112/18/57/00/1.2M/SA-DN/NWH/V0 18W 5700K < 10% >0.95 0.0789 Amps 2kg
    VLC1203 VLCS/112/24/57/00/1.2M/SA-DN/NWH/V0 24W 5700K < 10% >0.95 0.105 Amps 2kg
    VLC1204 VLCS/112/28/57/00/1.2M/IC-DN/NWH/V0 28W 5700K < 10% >0.95 0.120 Amps 2kg
    VLC1205 VLCS/112/18/40/00/1.2M/SA-DN/NWH/V0 18W 4000K < 10% >0.95 0.078 Amps 2kg
    VLC1206 VLCS/112/24/40/00/1.2M/SA-DN/NWH/V0 24W 4000K < 10% >0.95 0.105 Amps 2kg
    VLC1207 VLCS/112/28/40/00/1.2M/IC-DN/NWH/V0 28W 4000K < 10% >0.95 0.120 Amps 2kg
    Lamp Enclosed Rated
