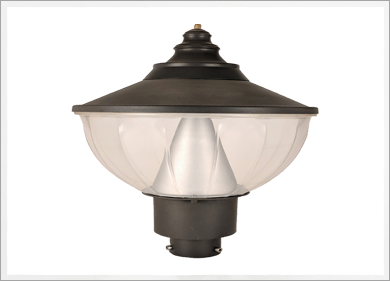

SALVIA-6

LED Panel Edgelit
Salvia-6
LED Panel Edgelit

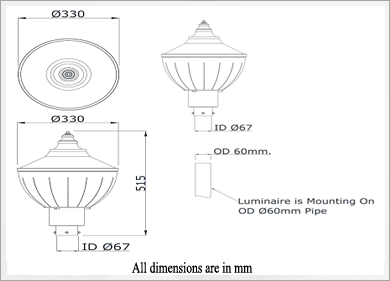

Dimension Details
LED Panel Edgelit

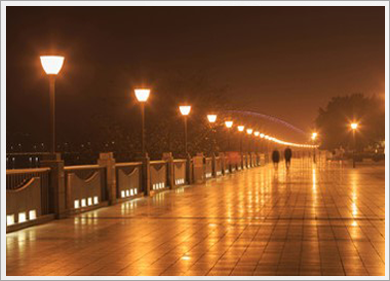

Application

Description

Post top lighting decorate the park, landscape or area lighting with utmost safety, security & aesthetics. The role of a post top lighting is to create comfortable & safe ambience that attracts people once the sun has set. Salvia -6 is LED post top lantern designed with lasting LED source with high optical &electrical performance and excellent energy saving with maintenance free operation.

Specifications & Features

  • Salvia 6 is modern post top design luminaire with high reliability and nice visual appearance.
  • Post Top luminaire is available in 45W LED system.
  • Luminaire housing aluminum & grey powder coated with acrylic clear diffuser.
  • Aluminum reflector provided at LED area to minimize glare with spun aluminum powder coated canopy.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K /3000K available & CRI >70
  • The surge protection of the luminaire is 4KV inbuilt & external 10KV
  • Operating voltage 140V -270V & THD < 10% & Pf >0.95
  • The luminaire Electrical Safety Class I & IP65.
  • Luminaire mounting suitable for 60mm OD pipe
  • Luminaire is provided with all accessories with easy installation & serviceability.

    • Installation & Maintenance

  • Loose the M6 screws in the bottom of the Luminaire, connect the input wires to LEN connector, fix the luminaire to the pole dia 60 mm recommended, Tight the M6 screws and complete the installation.
  • Driver replacement: Remove the Knurling Knob on top of the Luminaire, and open the doom, replace the driver.

    • Applications

  • Landscapes
  • Parks
  • Pathways
  • Gardens
  • Walkways
  • Downtown

    • Compliance

  • IP 65
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLB6024 VLBP/613/45/57/NGG/V0 45W 5700K 0.195 Amps < 10% >0.95 3.5kg
    VLB6025 VLBP/613/45/30/NGG/V0 45W 3000K 0.195 Amps < 10% >0.95 3.5kg
    Lamp Enclosed Rated
