BLUE HILL 3

LED Panel Edgelit
Blue Hill 3
LED Panel Edgelit

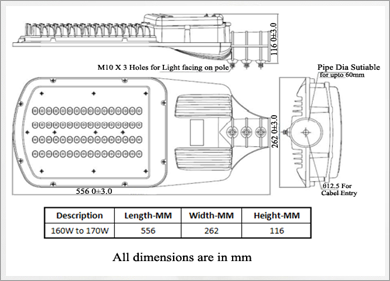

Dimension Details
LED Panel Edgelit

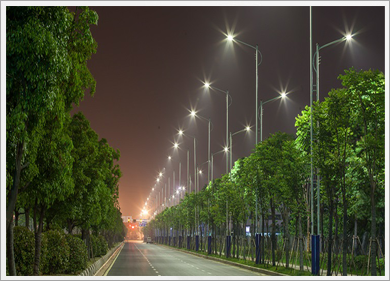

Application

Description

LED street lighting plays a vital role in ensuring smooth traffic flow and safety of the residents, drivers, riders, walkers & pedestrians. Thus Venture Street Lighting luminaire is curated for reduce energy consumption, project ecosystem , proper road lighting rhythm with blend of versatility ,durability, energy savings &high safety Blue Hill 3 Street Light series is a high performance luminaire perfect for wide array of roadways application. Its helps to improve the economic value of the project when it comes to large infra , city roads & highways.

Specifications & Features

  • Options are available in 160W & 170W with best in class Lumen per watt– more light for less cost. Available with efficacy 100LPW.
  • Elegantly designed pressure die cast aluminum housing body with optimal heat sink for better thermal dissipation.
  • Tempered Protective Toughened glass, thermal shock and impact resistant fixed to the housing with SS screws.
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K and CRI > 70 for brighter outdoor application.
  • Secondary lens used for asymmetric wide distribution, ideal for street light application.
  • Use of PG11 cable gland allows air tight wire entry to housing.
  • In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 6kV with electrical class I rating for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.

    • Installation & Maintenance

  • Compatible for pole mounting with pole outer diameter upto 60mm.
  • Fixture can be mounted with help of M10 bolts (3 no's) made of Stainless Steel. Wiring through open 3 poles wires.

    • Applications

  • Expressways
  • Highways and Overhead roads
  • Industrial main roads
  • City major roads

    • Compliance

  • IP 66
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLR4065 VLRS/413/160/57/00/NBK/V0 160W 5700K 0.702A Amps < 10% >0.95 4.75kg
    VLR4065 VLRS/413/170/57/00/NBK/V0 170W 5700K 0.746 Amps < 10% >0.95 4.75kg
    Lamp Enclosed Rated
