LED Panel Edgelit
 LED Panel Edgelit

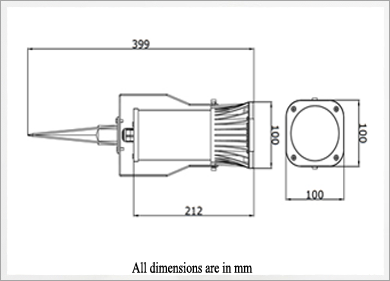

Dimension Details
 LED Panel Edgelit


Hebe LED spike light designed to be mounted on horizontal surfaces provides directional light and to highlight architectural features and structural elements. Adjustable Projectors output to create a particular effect.

Specifications & Features

  • Hebe Provides Antique feel in urban landscape. It is available in 30W LED system.
  • Luminaire is provided in aluminum housing powder coated design with clear toughened glass..
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 3000K available & CRI >70.
  • The surge protection of the luminaire is 4KV inbuilt & 10KV external.
  • The luminaire Electrical Safety Class I & IP65.
  • Cradle bracket mounting.
  • Luminaire is provided with all accessories with easy installation & serviceability.
  • Installation & Maintenance

  • Hebe focus light easily mounting on the ground / surface mount using cradle and fixing with suitable anchor bolts, Tilt the luminaire required angle and tight the screw properly.
  • Connect the input wires to LEN Connector, seal with water protected insulating tape.
  • Driver replacement: Open back cover, and replace the driver.
  • Applications

  • Landscapes
  • Outdoor
  • Pathways
  • Gardens
  • Compliance

  • IP 65
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD Power Factor Weight (Kg)
    VLB6028 VLBS/616/25/30/NBK/V0 25W 3000K 0.1 Amps < 10% >0.95 0.465kg
    Lamp Enclosed Rated
