Canopy

Luminaires

Canopy
Canopy
Canopy

Applications

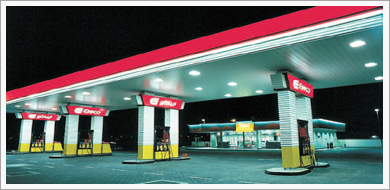

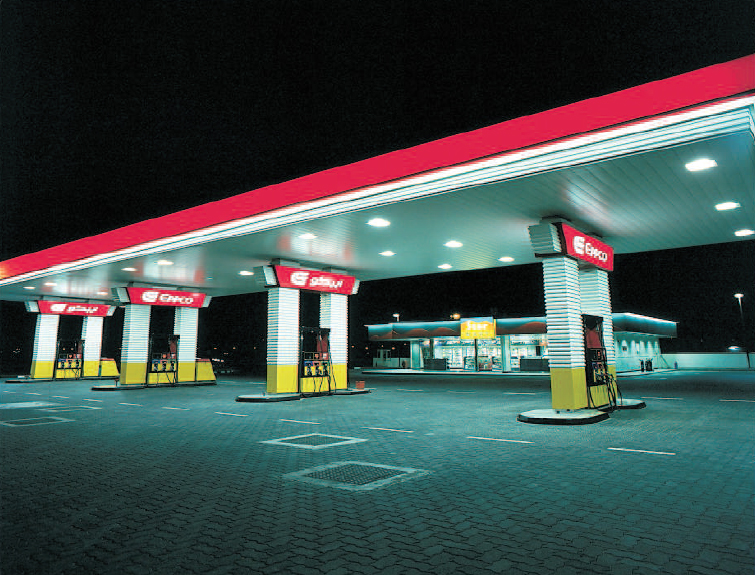

  • Petrol pumps
  • Industrial Bays
  • Construction

  • Die cast aluminium corrosion resistant housing, silicon rubber gasket, heat resistant toughened glass cover fitted with copper wound ballast, PF correction capacitor and electronic ignitor are prewired upto terminal block.
  • Epoxy powder coated painting
  • Lamp holder base Rx7s with silver contacts for DE lamp, E-40 skirted porcelain for tubular lamp
  • Earthing terminal
  • Reflector

  • Electrochemically brightened and high purity anodized aluminium hammered finish reflector provides excellent light distribution.
  • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/CL-70W MH 1 70 220 / 240 410 120 245
    VL/CL-150W MH / SV 1 150 220 / 240 410 120 245
    VL/CL-200W MH 1 200 220 / 240 560 160 265
    VL/CL-250W MH / SV 1 250 220 / 240 560 160 265
    VL/CL-320W MH 1 320 220 / 240 560 160 265
    VL/CL-400W MH / SV 1 400 220 / 240 560 160 265
    Lamp Enclosed Rated
    * MH/MV configuration for 250 & 400 W is also available

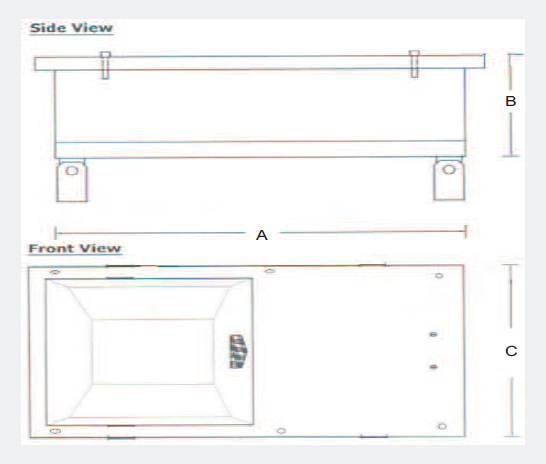

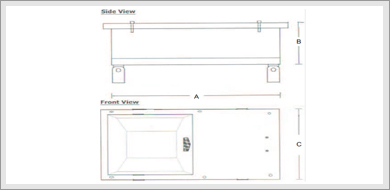

    Dimensions (mm) +/- 5%
