Indoor Commercial Lighting
PINE NEO 100 RECESS, INTERCONNECT & PENDANT

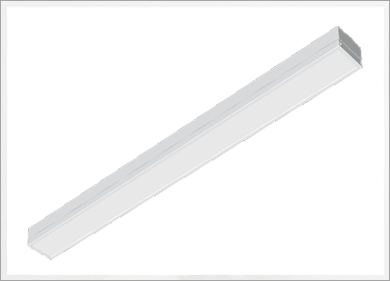

Pine Neo 100 Recess

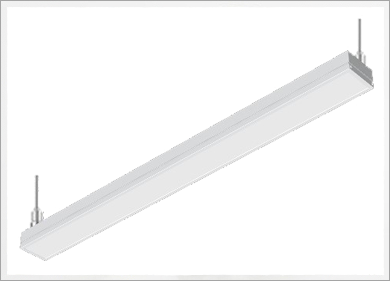

Pine Neo 100 Pendant

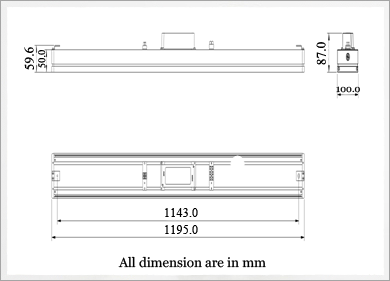

Pine Neo 100 Recess
Pine Neo 100 Pendant
Application
Description
LED commercial fixture suitable for22W, 38W & 34W in Cool white and neutral white variants inrecessed version and 22W & 34 in pendant version. This range brings optimize visual comfort and architectural appeal to modern workspace.
Specifications & Features
Elegantly designed Housing is made of high strength light weight aluminium extrusion for excellent surface finish.
Elegantly designed pressure diecast aluminium endcaps
Flat diff user is made of special Polycarbonate material with excellent diffusion property,delivering superior light output with low glare and max uniformity
Rated life of L70@50000 hour sensure sun interrupted longservice life.
The luminaire is rated for Efficacy >100 LPW, Pf >0.95 , THD <10%.
Color temperature of 5600K &4000K for soothing indoor application.
Best in class lumen per watt-more light for less cost.
In-built electrical protections like over voltage,shortcircuit, overload,miswiring for additional safety precautions.
With high efficiency low power lossdriver,systemis maintained at cooler temperature and lead stolonger driverlife.
Available in both recessed and pendant version with ability to cascade for seamless lighting effect
Installation & Maintenance
Mounting suitable for techzone ceiling with cut-out dimension of 80x1175 mm.
Please use frame for mounting on POP /Gypsum ceiling .
Suspension mounting through Two mounting brackets in the rear side.
Easy driver replacement on top of the luminaire.
Suitable for Surface mounting on RCC ceiling .
Universal suspension system with quick on site adjustment up to 1500 mm.
Easy to install with drill & ribbed anchor screw system.
Access to driver is from top of the fixture.

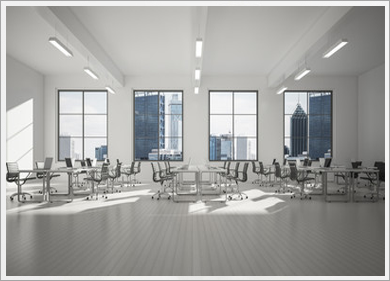

Applications
Office & Retail
Hospitality & Healthcare
Electrical & Ordering Information Pine Neo 100 Recess
| Model / Ordering code |
Description |
System Wattage |
Color Temp |
THD |
Power Factor |
Mains Current |
Weight (Kg) |
| VLC1170 |
VLCR/122/22/57/00/1.2M/SA/NWH/V0 |
22W |
5700K |
< 10% |
>0.95 |
0.095 Amps |
2.7kg |
| VLC1171 |
VLCR/122/28/57/00/1.2M/SA/NWH/V0 |
28W |
5700K |
< 10% |
>0.95 |
0.120 Amps |
2.7kg |
| VLC1172 |
VLCR/122/34/57/00/1.2M/SA/NWH/V0 |
34W |
5700K |
< 10% |
>0.95 |
0.150 Amps |
2.7kg |
Electrical &Ordering Information Pine Neo 100 Pendant
| Model / Ordering code |
Description |
System Wattage |
Color Temp |
THD |
Power Factor |
Mains Current |
Weight (Kg) |
| VLC1176 |
VLCP/124/22/57/00/1.2/NWH/V0 |
22W |
5700K |
< 10% |
>0.95 |
0.095 Amps |
2.75kg |
| VLC1177 |
VLCP/124/34/57/00/1.2/NWH/V0 |
34W |
5700K |
< 10% |
>0.95 |
0.150 Amps |
2.75kg |
