RUBUS SQUARE DOWNLIGHT

LED Panel Edgelit

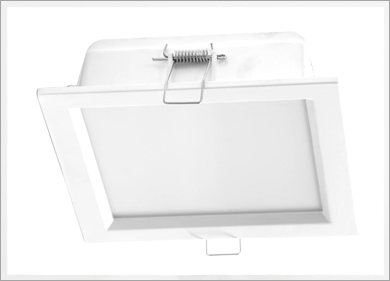

Rubus Square Downlight
LED Panel Edgelit
Dimension Details
LED Panel Edgelit

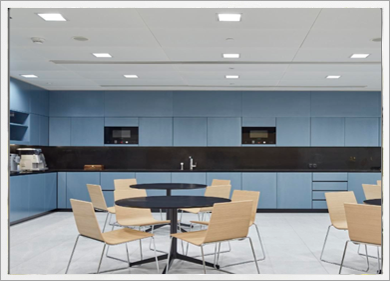

Application

Description

RUBUS new range of professional LED recessed down-lighter designed with high quality LED technology, which encompasses both functional and decorative values. RUBUS Square DL is offered in variants of 12W, 15W, 17W, 20W, and 24W watt in 6 Inch housing, and 6W, 10W, 12W and 15W in 4 Inch housing. Made in pressure die cast Aluminum housing along with pressure die cast frame intended to provide better thermal management and also create a welcoming ambience in modern indoor space. Its design attributes makes it futuristic yet an elegant green product bought from Venture Lighting Family.

Specifications & Features

  • Options available in 6W, 10W 12W, 14W, 15W,17W, 20W and 24W can directly replace existing conventional downlights.
  • Rubus Square downlighter is offered in 12W,15W,17W,20W &24W in std version in 6 inch housing>100LPW .
  • Rubus Square downlighter is offered in 6W,10W,12W,15Win high lumen version in 4 inch >110LPW.
  • Elegantly designed Pressure Die Cast Aluminum housing body for better thermal dissipation.
  • Sturdy Pressure Die Cast Aluminum frame for better fit and finish.
  • Use of high grade reflective sheet to enhance light output.
  • Flat diffuser is made of special light grade plastic material with excellent diffusion properties, delivering superior light output with maximum uniformity.
  • Rated life of L70 @ 60000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space..
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • The luminaire is rated for Efficacy >100 LPW, Pf >0.95 , THD <10%

    • Installation & Maintenance

  • For 6”housing 12, 15, 17, 20 & 24W system cut 140mmX140mm mounting hole, make sure that the ceiling thickness is 10-15mm.
  • For 4”housing 6, 10, 12 & 15 system cut 115mmX115mm mounting hole, make sure that the ceiling thickness is 10-15mm.

    • Applications

  • Office Interior
  • Hotels
  • Departmental store & Shopping malls
  • Airport terminal
  • Restaurants
  • Healthcare
  • Schools

    • Compliance

  • IP 20
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLD2000 VLDR/200/06/57/4S/05/NWH/V0 6W in 4" 5700K 0.025 < 10% >0.8 0.45kg
    VLD2001 VLDR/200/10/57/4S/10/NWH/V0 10W in 4“_HL 5700K 0.0439 < 10% >0.8 0.45kg
    VLD2002 VLDR/200/12/57/4S/10/NWH/V0 12W in 4"_HL 5700K 0.0526 < 10% > 0.95 0.45kg
    VLD2003 VLDR/200/15/57/4S/10/NWH/V0 15W in 4"_HL 5700K 0.0658 < 10% > 0.95 0.45kg
    VLD2021 VLDR/204/12/57/6S/00/NWH/V0 12W in 6" 5700K 0.0526 < 10% > 0.95 0.6kg
    VLD2022 VLDR/204/15/57/6S/00/NWH/V0 15W in 6" 5700K 0.0658 < 10% > 0.95 0.6kg
    VLD2023 VLDR/201/12/57/6R/10/NWH/V0 17W in 6" 5700K 0.0746 < 10% > 0.95 0.6kg
    VLD2024 VLDR/204/20/57/6S/00/NWH/V0 20W in 6" 5700K 0.0877 < 10% > 0.95 0.6kg
    VLD2025 VLDR/204/24/57/6S/00/NWH/V0 24W in 6" 5700K 0.1053 < 10% > 0.95 0.6kg
    Lamp Enclosed Rated
