ALNUS NEO G3

LED Panel Edgelit
Alnus Neo G3
 LED Panel Edgelit

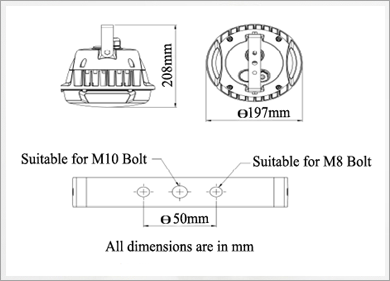

Dimension Details
 LED Panel Edgelit

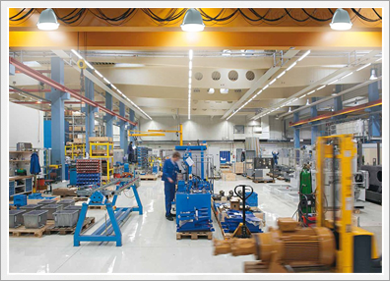

Application

Description

New Generation ALNUS Neo G3 is LED well glass luminaire available in 24W, 30W and 40W and is ideally suitable for industrial application. ALNUS Neo takes us one step closer to modernizing lighting in an industrial building. Apart from enhancing visibility and safety in an industrial environment ALNUS Neo helps in creating soothing lighting environment. This results in increased productivity of an employee in any industry. ALNUS Neo G3 saves more energy compared to that of conventional industrial luminaire.

Specifications & Features

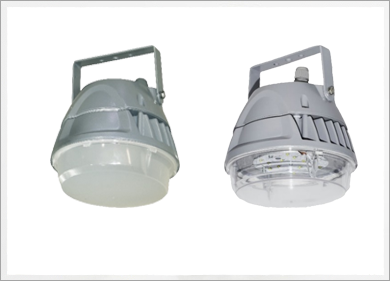

  • Alnus Neo G3 Well Glass Luminaire available in wattages 24W, 30W, 40W in clear and diffuse version .
  • Elegantly designed pressure die cast aluminum housing body with powder coated in metallic grey.
  • Injection molded diffuser is made of special Polycarbonate material with high transmission index, delivering superior light output.
  • Passive heat sink for better thermal dissipation.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • In-built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • Color temperature of 5700K for brighter outdoor application.
  • Best in class lumen per watt - more light for less cost.
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.
  • Suitable for loop-in-loop-out wiring through PG11 cable gland.
  • Installation & Maintenance

  • Inbuilt cradle arrangement suitable for overhead mounting through single M10 or 2No of M8 Bolts.
  • Fixture maintenance can be done easily by handling 4 No of M4 screws.
  • Wiring can be done through separate open 3 poles wires.
  • Applications

  • Warehouses
  • Rolling mills
  • Assembly lines
  • Workshops
  • Generator rooms
  • Compliance

  • IP 66
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLI3073 VLIS/313/24/57/00/CP/NGR/V0 24W 5700K 0.105A < 10% >0.95 2.4kg
    VLI3074 VLIS/313/30/57/00/CP/NGR/V0 30W 5700K 0.131A < 10% >0.95 2.4kg
    VLI3075 VLIS/313/40/57/00/CP/NGR/V0 40W 5700K 0.175A < 10% >0.95 2.4kg
    VLI3076 VLIS/313/24/57/00/DP/NGR/V0 24W 5700K 0.105A < 10% >0.95 2.4kg
    VLI3077 VLIS/313/30/57/00/DP/NGR/V0 30W 5700K 0.131A < 10% >0.95 2.4kg
    VLI3078 VLIS/313/40/57/00/DP/NGR/V0 40W 5700K 0.175A < 10% >0.95 2.4kg
    Lamp Enclosed Rated
