LED Tube T8
 LED Panel Edgelit

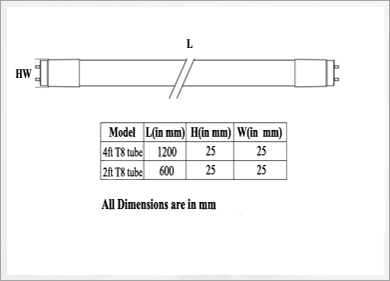

Dimension Details

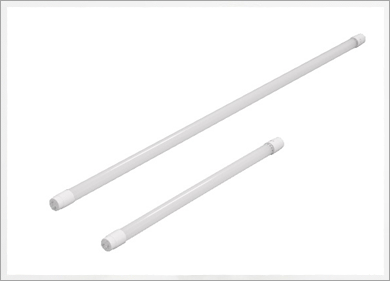

Venture make LED tube lighting solution for commercial application offered in standard 2 feet (10W) and 4 feet (20W) variants. Designed for easy replacement of conventional FTL tube at existing setup with minimal modification of existing wiring. Carefully selected diffuser material, made of special grade lighting material helps provide maximum light output with ultimate uniformity. It qualifies as perfect green product from the Venture Lighting family.

Specifications & Features

  • Minimalistic designed Co-extrusion polymer housing body for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Rated life of L70 @ 30000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space.
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost.
  • In built surge protection of up to 2KV
  • With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.
  • Options available in 10W and 20W in 2 feet and 4 feet respectively.
  • Installation & Maintenance

  • Suitable for retrofit lamp replacement compatible with G13 lamp holder. Please ensure to mount the power side tube wired lamp holder.

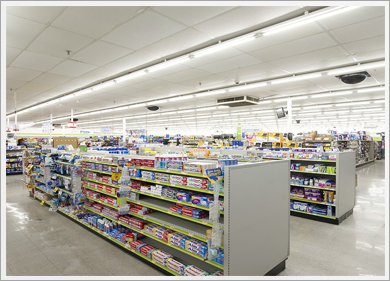

  • Applications

  • Household Application
  • Retail stores
  • Office space
  • Hotels, Restaurants
  • Museum display
  • Shopping malls
  • Airport terminals etc.
  • Compliance

  • IP 20
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLL7255 VLLS/725/10/57/00/NWH/V0 10W 5700K 0.05 A < 10% >0.95 0.1kg
    VLL7256 VLLS/725/20/57/00/NWH/V0 20W 5700K 0.1 A < 10% >0.95 0.2kg
    Lamp Enclosed Rated
