HID Lighting

Top Mounting High Bay

Luminaires

Top Mounting High Bay
Top Mounting High Bay
Top Mounting High Bay

Applications

  • Steel plants
  • Thermal power stations
  • Warehouses
  • Industries
  • Fertilizer plants
  • Aircraft hangers

    • Construction

  • Top mounted die cast aluminium corrosion resistant housing accommodating lamp holder, Copper wound ballast, PF correction capacitor, Electronic ignitor, prewired upto terminal block
  • Epoxy Powder coated painting
  • M.s. eyebolt for mounting
  • E40 Porcelain Lamp holder base
  • Earthing terminal
  • IP 55 Protected

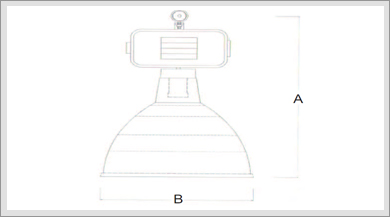

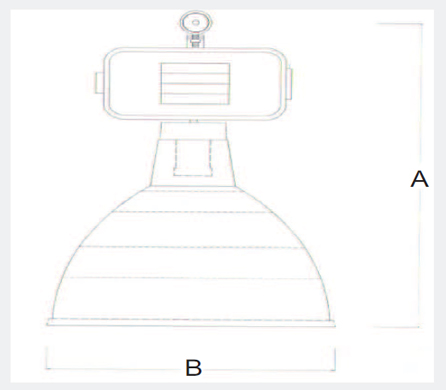

    • Dimension

    A B
    630 420

    Dimensions (mm) +/- 5%

    Reflector

  • Electrochemically brightened and high purity anodized aluminium reflector for excellent light distribution.

    • Open Rated

    Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage
    VL/HBOR/TM - 150W MH/SV 1 150 220 / 240
    VL/HBOR/TM - 200W MH 1 200 220 / 240
    VL/HBOR/TM - 250W MH/SV 1 250 220 / 240
    VL/HBOR/TM - 320W MH 1 320 220 / 240
    VL/HBOR/TM - 400W MH/SV 1 400 220 / 240
    Lamp Enclosed Rated

    Enclosed Rated

    Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage
    VL/HBTE/TM - 150W MH/SV 1 150 220 / 240
    VL/HBTE/TM - 200W MH 1 200 220 / 240
    VL/HBTE/TM - 250W MH/SV 1 250 220 / 240
    VL/HBTE/TM - 320W MH 1 320 220 / 240
    VL/HBTE/TM - 400W MH/SV 1 400 220 / 240
    Lamp Enclosed Rated

    * MH/SV configuration for 250 & 400 W is also available
