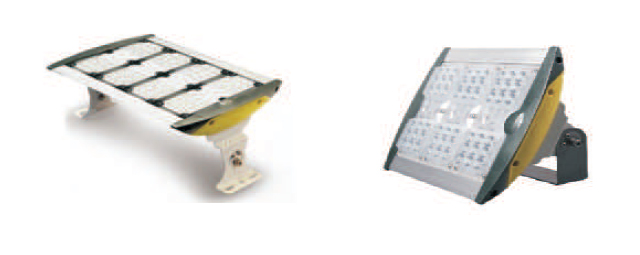

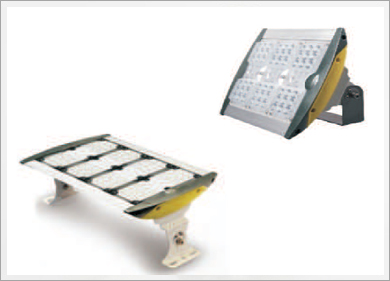

LED Flood Light

Gama HVAC

 Gama HVAC
 Gama HVAC
 Gama HVAC

Specifications & Features

  • Extruded Aluminum housing and die cast Aluminum end frames with highly efficient optical grade Polymer acrylic lenses
  • 50% energy saving Vis a Vis Conventional HID Flood light
  • Unique driverless system for high reliability
  • Integrated LED Chips and components in module with PF > 95%
  • Equipped with 4KV Surge suppression Protection
  • Innovative AC voltage technology
  • Wide voltage range 180 - 270V
  • Color Rendering Index (CRI) >= 75
  • Working ambient temperature -25°C to + 50°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 60°x 135°view angle
  • Uniform diffuse & excellent glare control
  • Flicker free instant start electronic operation
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • Class I Electric Strength.
  • IP 65 Ingress Protection

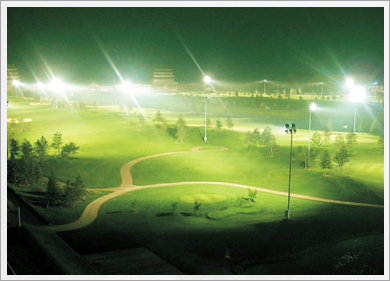

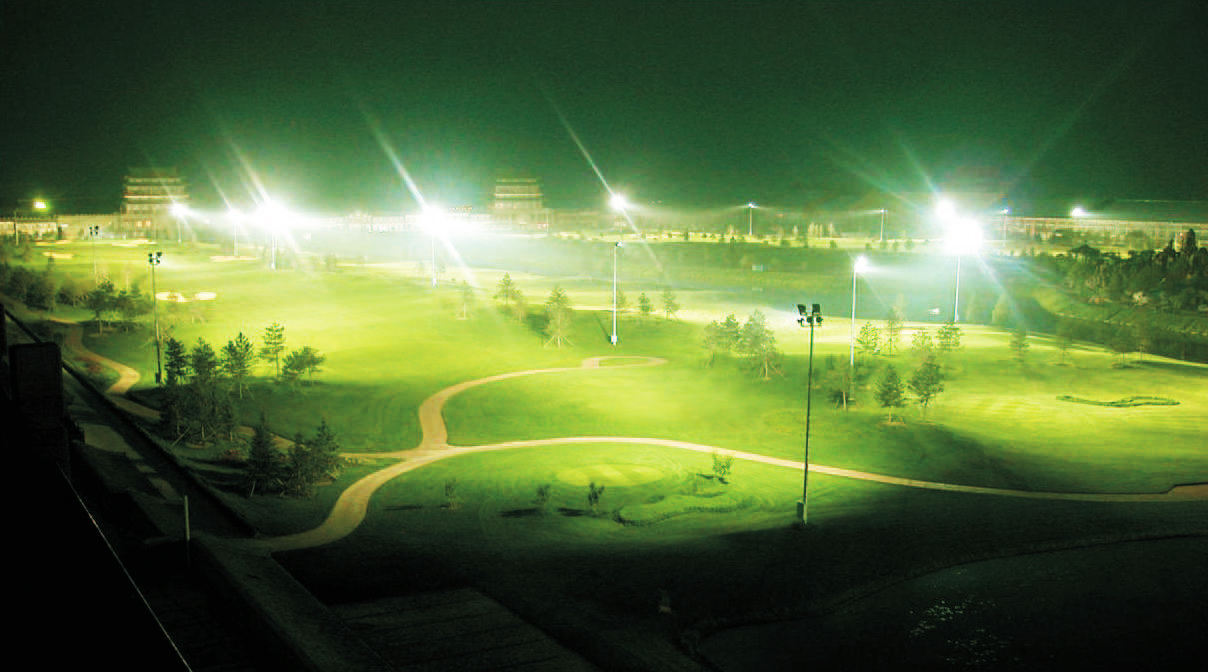

  • Applications

  • Industrial areas
  • Parking lot
  • Security Lighting
  • Tunnel Lighting
  • Highmast Lighting
  • Facade Lighting
  • Installation & Maintenance

  • Mounted with bracket /cradle on any rigid surface
  • Power Supply should be disconnected before service

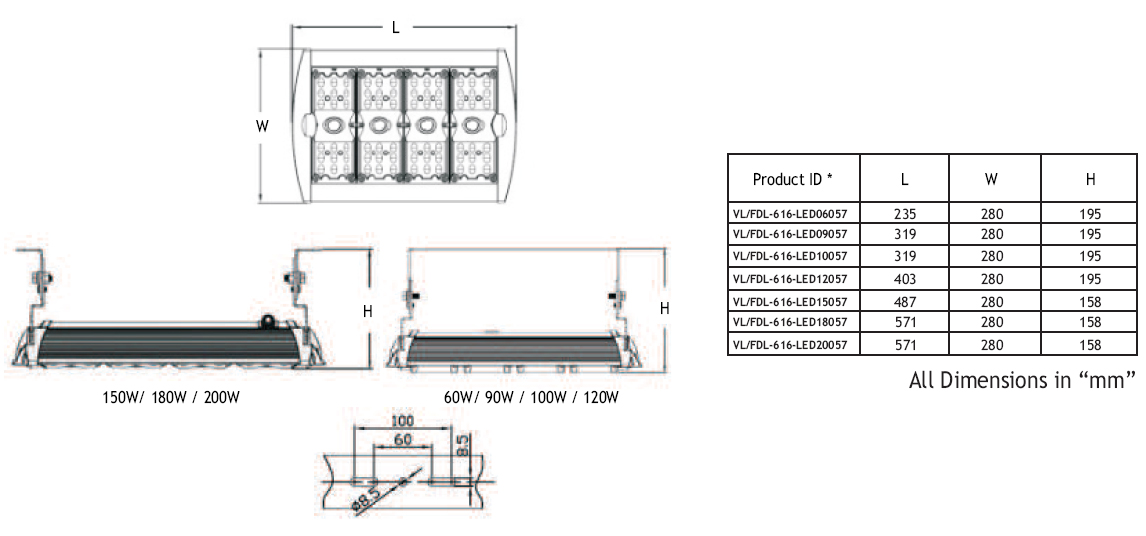

  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/FDL-616-LED06057 Gama HVAC LED Flood Light 60/CW IP 65 60 230 0.274 5700 6000
    VL/FDL-616-LED09057 Gama HVAC LED Flood Light 90/CW IP 65 90 230 0.410 5700 9000
    VL/FDL-616-LED10057 Gama HVAC LED Flood Light 100/CW IP 65 100 230 0.455 5700 9500
    VL/FDL-616-LED12057 Gama HVAC LED Flood Light 120/CW IP 65 120 230 0.540 5700 12000
    VL/FDL-616-LED15057 Gama HVAC LED Flood Light 150/CW IP 65 150 230 0.680 5700 14000
    VL/FDL-616-LED18057 Gama HVAC LED Flood Light 180/CW IP 65 180 230 0.820 5700 18000
    VL/FDL-616-LED20057 Gama HVAC LED Flood Light 200/CW IP 65 200 230 0.915 5700 19000
    Lamp Enclosed Rated
