HID Lighting

Street Light

Luminaires

Street Light
Street Light
Street Light

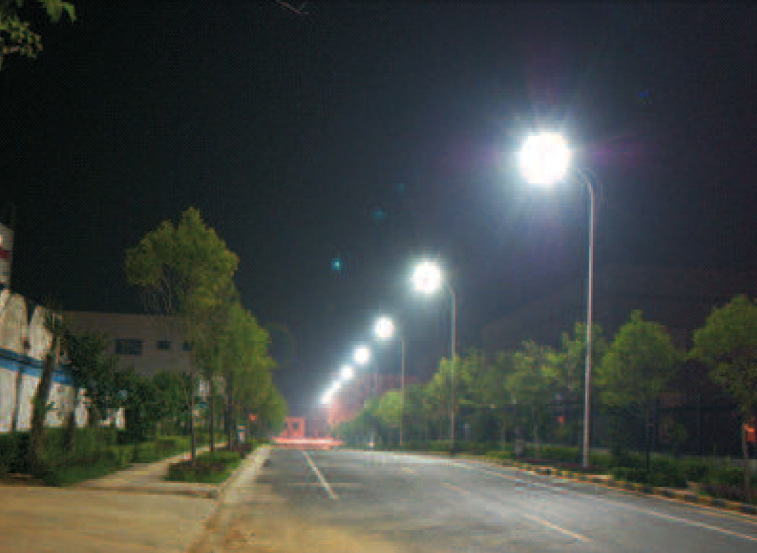

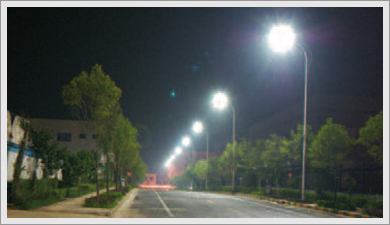

Applications

  • Secondary roads
  • Industrial areas
  • Residential areas
  • Car parks
  • Highways
  • Roundabouts
  • Road junction
  • Security lighting

    • Construction

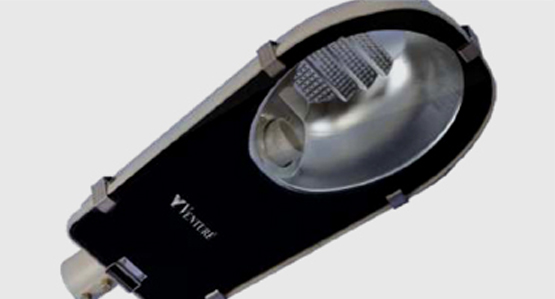

  • Single piece die cast aluminium housing, long lasting felt gasket, acrylic bowl fitted with copper wound ballast, PF correction capacitor and electronic ignitor prewired upto terminal block.
  • Epoxy powder coated painting
  • Stainless steel toggles
  • E27 Porcelain Lamp holder base
  • Earthing terminal
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodized aluminium Pot optic reflector provide efficient light distribution.
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/SLG-50W MH 1 50 220 / 240 470 105 225
    VL/SLG-70W MH/SV 1 70 220 / 240 470 105 225
    VL/SLG-100W MH 1 100 220 / 240 470 105 225
    Street Light

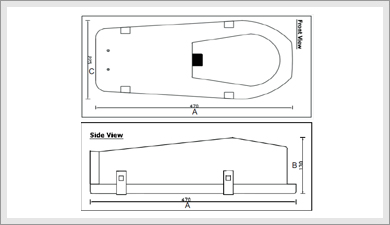

    Dimensions (mm) +/- 5%

    Street Light - Luminaires

    Street Light
    Street Light
    Street Light

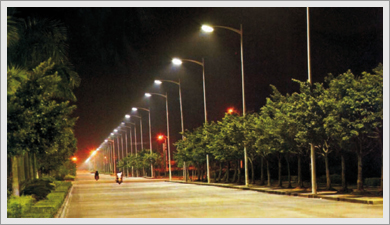

    Applications

  • Highways
  • Industrial areas
  • Car parks
  • Roundabouts
  • Road junction
  • Security lighting

    • Construction

  • Single piece die cast aluminium corrosion resistant housing, synthetic rubber gasket, heat resistant & toughened glass cover fitted with copper wound ballast, PF correction capacitor and electronic ignitor are prewired upto terminal block.
  • Epoxy powder coated painting
  • Stainless steel toggles
  • E40 Porcelain Lamp holder base
  • Earthing terminal
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodized aluminium Pot optic reflector provide efficient light distribution.
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/SL-150W MH/SV 1 150 220 / 240 605 145 290
    VL/SL-200W MH 1 200 220 / 240 605 145 290
    VL/SL-250W MH/SV 1 250 220 / 240 605 145 290
    VL/SL-400W MH/SV 1 400 220 / 240 710 175 315
    Lamp Enclosed Rated

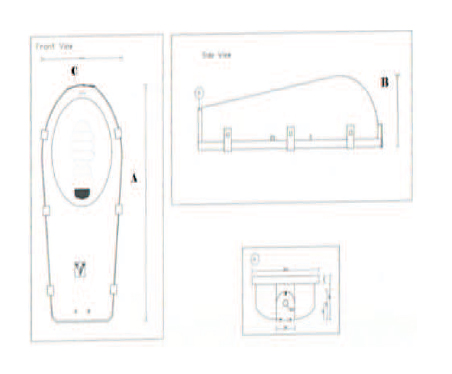

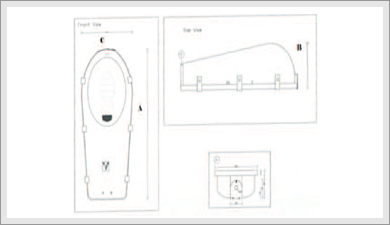

    Dimensions (mm) +/- 5%

    OHIO-Top Opening Street Light - Luminaires

    Street Light
    Street Light
    Street Light

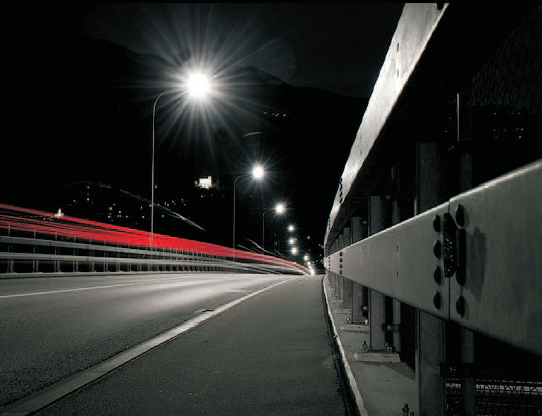

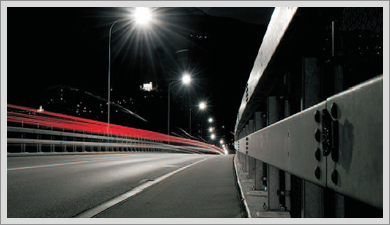

    Applications

  • Highways
  • Industrial areas
  • Car parks
  • Secondary Road
  • Roundabouts
  • Road junction
  • Security lighting

    • Construction

  • High Pressure die cast aluminium corrosion resistant housing, synthetic rubber gasket, heat resistant & toughened Curved or, Flat clear glass cover, Copper wound ballast, PF correction capacitor, Electronic ignitor, prewired upto terminal block.
  • Spirit Level at bottom casing to reduce light pollution
  • Epoxy powder coated
  • Stainless steel toggles
  • E27 or, E40 Porcelain Lamp holder base
  • 0 - 30 deg adjustable system
  • Earthing terminal
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodized aluminum Pot optic reflector.
  • 95.8% efficient light distribution
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C D
    VL/OH/SL-150W MH / SV 1 150 220 / 240 780 325 202 62
    VL/OH/SL-200W MH 1 200 220 / 240 780 325 202 62
    VL/OH/SL-250W MH / SV 1 250 220 / 240 780 325 202 62
    VL/OH/SL-320W MH 1 320 220 / 240 780 325 202 62
    VL/OH/SL-400W MH / SV 1 400 220 / 240 780 325 202 62
    Lamp Enclosed Rated

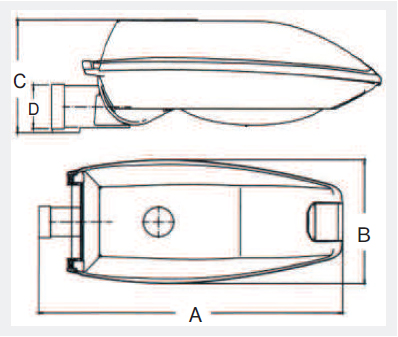

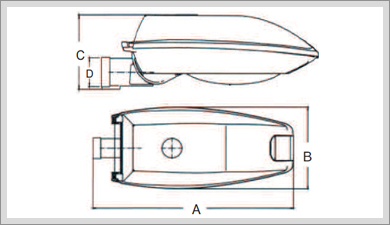

    Dimensions (mm) +/- 5%
