LED Lighting

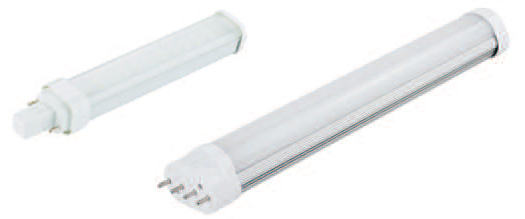

Retrofit PL Tube

Vision PL Tube

 Vision PL Tube
 Vision PL Tube
 Vision PL Tube

Specifications & Features

  • Thermo-bio plastic housing with highly efficient Polychromatic dust resistant anti-static diffuser
  • Extruded Aluminum heat sink for thermal stability
  • 50% energy saving Vis a Vis conventional PLC & PLL Lamps
  • Retrofit solution to Traditional CFL PLC & PLL Lamps
  • Adjustable cut off up to 180 deg to avoid light loss
  • Over Voltage & Current protection
  • More than 85% driver efficiency with PF > 90%
  • Wide operating voltage 120 - 277V
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 50°C
  • Rated Life 35,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 160°view angle
  • Flicker free instant start electronic operation
  • ElectElectric wave & radio interference free
  • Without mercury, UV & IR radiation
  • IP 20 Ingress Protection

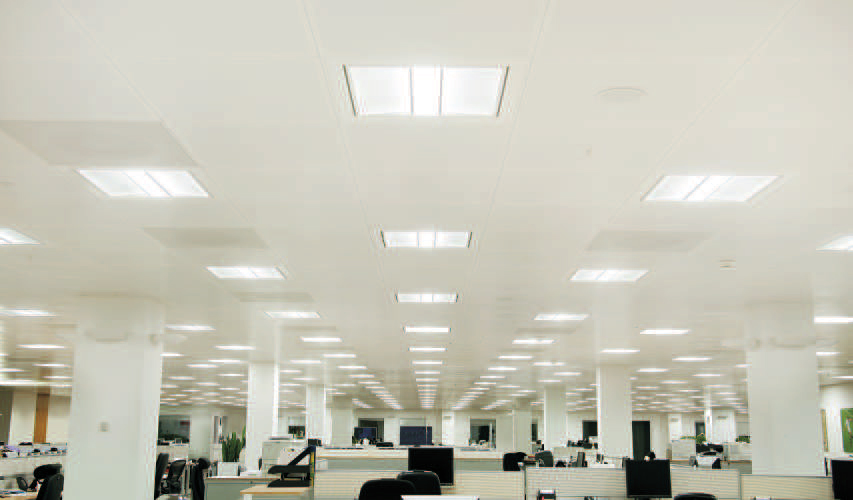

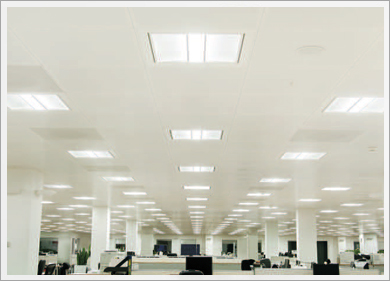

  • Applications

  • Hotels
  • Restaurant
  • Offices
  • Institution
  • Showroom
  • Residential
  • Installation & Maintenance

  • Suitable to fix on G24 & 2G11 Holders
  • Phase and neutral supply line to be connected
  • Optimized performances on horizontal mounted sockets
  • Recommended to use in open / not fully enclosed fixture
  • Power Supply should be disconnected before service
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/LPL-G24-LED00665 Vision LED PLC Tube 06/CW G24 6 230 0.028 6500 600
    VL/LPL-G24-LED00865 Vision LED PLC Tube 08/CW G24 8 230 0.038 6500 750
    VL/LPL-G24-LED01165 Vision LED PLC Tube 11/CW G24 11 230 0.050 6500 900
    VL/LPL-2G11-LED01865 Vision LED PLL Tube 18/WW 2G11 18 230 0.080 6500 1620
    Lamp Enclosed Rated

    *xx also available in 3000K & 4000K CCTs on request
