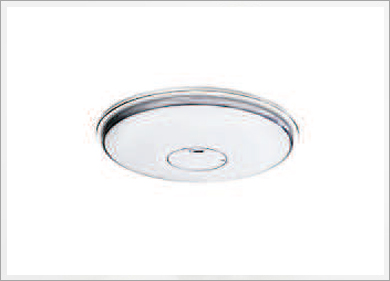

LED Ceiling Light

lntelo

LED Panel Edgelit
 LED Panel Edgelit
 LED Panel Edgelit

Specifications & Features

  • Flexible brightness adjustment through remote.
  • Integrated Night Light option
  • Lower energy consumption, 60% energy saving
  • Isolated constant current driver with > 95% Power factor
  • More than 85% driver efficiency
  • Wide operating voltage 100 - 265Vac
  • Color Rendering Index (CRI) >= 75
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 35,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without ripple wave, flash
  • Electric wave & radio interference free
  • Without mercury, UV & IR radiation
  • IP 20 Ingress Protection

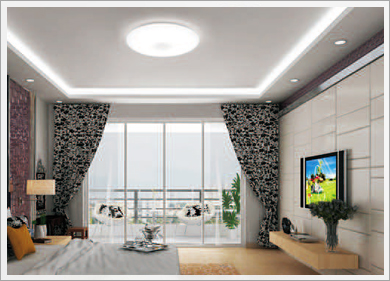

  • Applications

  • Hotel
  • Office
  • Hospitality
  • Auditorium
  • Dome Lighting
  • Reception areas
  • Residential
  • Installation & Maintenance

  • Feasible for Surface mounting
  • Power Supply should be disconnected before service.
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/CDL-601-LED04830 Intelo LED Ceiling light 48/ WW 48 230 0.22 3000 3700
    VL/CDL-601-LED04840 Intelo LED Ceiling light 48/ NW 48 230 0.22 4000 3700
    VL/CDL-601-LED04857 Intelo LED Ceiling light 48/ PW 48 230 0.22 5700 4200
    VL/CDL-601-LED04865 Intelo LED Ceiling light 48/ CW 48 230 0.22 6500 4200
    Lamp Enclosed Rated
