LED BULK HEAD

LED Panel Edgelit
LED Bulk Head
 LED Panel Edgelit

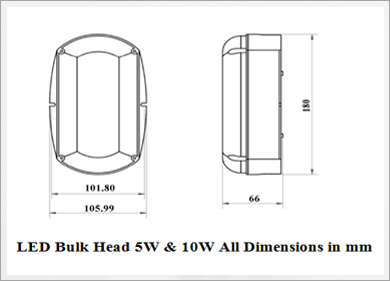

Dimension Details
 LED Panel Edgelit

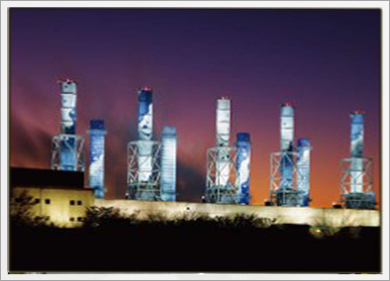

Application

Description

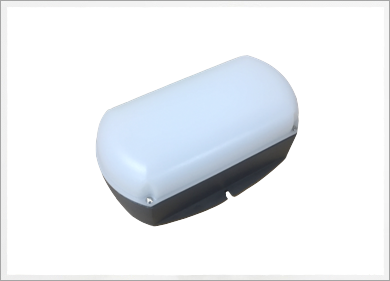

LED Bulk Head is a lighting solution for wall mount industrial application offered in 5W & 10 W. Single body contemporary design creates an impression of sturdiness for rugged environment. High impact injection molded diffuser made of special diffusion helps provide maximum light output. The LED Bulk Head range is a wall and ceiling LED luminaire that can be utilised in versatile application ranges including damp environments, entrance halls, reception, stairwells, corridor’s circulation routes & industrial environments.

Specifications & Features

  • LED Bulk Head is available in 5W & 10W.
  • Elegantly designed die-cast aluminum housing for excellent mechanical stability.
  • Injection molded transparent diffuser made of special diffusion material with high transmission, delivering effective light output and bears ingress protection of IP 65.
  • Best in class lumen per watt offered in >90 LPW variants offers best cost of ownership.
  • Excellent lumen maintenance of L70, 50000 hrs ensures uninterrupted long service life.
  • Best in class lumen per watt - more light for less cost.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • Total Harmonic distortion THD < 10 % , pf > 0.9 & CCT -5700K.
  • The luminaire can be mounted on wall or surface with 2 standard screws.
  • Installation & Maintenance

  • Surface Mounting through 2 screws at a pitch of 102 mm.
  • Cable entry is through PG7 cable gland.
  • Applications

  • Industrial lighting applications
  • Pathways
  • Platforms & Shaft locations
  • Housing Colonies & staircase
  • Compliance

  • IP 65
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLI3014 VLIS/301/05/57/DP/NGR/V0 5W 5700K 0.023Amp < 10% >0.9 0.6Kg
    VLI3006 VLIS/301//10/57/DP/NGR/V0 10W 5700K 0.046 Amps < 10% >0.9 0.6kg
    Lamp Enclosed Rated
