LED Lighting

LED Down Light

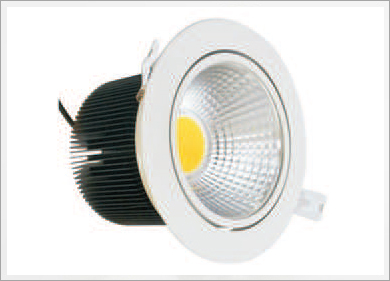

Crown Round

 Crown Square
 Crown Square
Crown Square

Specifications & Features

  • Die cast Aluminum frame with extruded Aluminum heat sink
  • High energy saving Vis a Vis Conventional Lighting-60% compared to CFL /Halogen Luminaires
  • Isolated constant current driver
  • More than 85% driver efficiency
  • Wide operating voltage 100 - 285Vac
  • Color Rendering Index (CRI) >= 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with > 60°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury, UV & IR radiation
  • IP 20 Ingress Protection
  • Applications

  • Shopping mall
  • Art Galleries
  • Jewelry Showrooms
  • Retail Stores
  • Hotels
  • Installation & Maintenance

  • Feasible for Recess mounting
  • Suitable for POP & Gypsum False Ceiling
  • Power Supply should be disconnected before service
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current (A) CCT (K) Lumen (lm)
    VL/DNL-505-LED00365 Crown Rnd LED Spot light 03/ CW 3 230 0.026 6500 270
    VL/DNL-505-LED00465 Crown Rnd LED Spot light 04/ CW 4 230 0.034 6500 360
    VL/DNL-505-LED00565 Crown Rnd Spot light 05/ CW 5 230 0.042 6500 450
    VL/DNL-505-LED00765 Crown Rnd LED Spot light 07/ CW 7 230 0.060 6500 630
    VL/DNL-505-LED00965 Crown Rnd LED Spot light 09/ CW 9 230 0.072 6500 810
    VL/DNL-505-LED01265 Crown Rnd LED Spot light 12/ CW 12 230 0.080 6500 1080
    VL/DNL-505-LED01565 Crown Rnd LED Spot light 15/ CW 15 230 0.068 6500 1350
    VL/DNL-505-LED02565 Crown Rnd Spot light 25/ CW 25 230 0.114 6500 2200
    Lamp Enclosed Rated

    * xx Also available in 3000K & 4000K CCTs

    Please call us on +91 44 2262 3096 or Email us at marketing@vlindia.com

    Our customer service team are ready to assist with all Venture Lighting product enquiries.
