LED Lighting

LED Flood Light

PDF Version

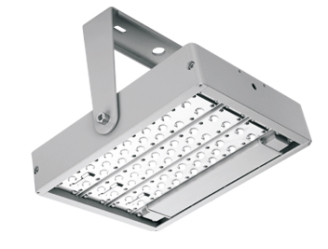

Aurora

Die cast Aluminum housing with corrosion resistant polyester powder coating

UV resistant PC lenses with stainless steel protection cover

Extruded Aluminum alloy heat sink with anodized finish for excellent thermal management for longer life

60% energy saving Vis a Vis Conventional HID Flood light

Isolated constant current driver with more than 95% power factor

Over current & voltage and Short circuit protection

More than 90% Driver efficiency with THDi < 20%

Equipped with 10KV Surge suppression Protection

Wide operating voltage 120 - 290V

Color Rendering Index (CRI) > 70

Working ambient temperature -20°C to + 50°C

Rated Life 55,000Hrs (Ta= 45°C @ L70)

Resistant to Vibration & High- Low Voltage

Electric wave & radio interference free

High intensity of illumination

Optical lenses provide 13+ desired light distribution

Easy to install and maintenance free

Class I Electric Strength

IK08 Impact Resistant

IP 67 Protection

Industrial areas

Airport Lighting

Security Lighting

Sport Lighting

High mast Lighting

Facade Lighting

Area Lightingg

Mounted with bracket /cradle on any rigid surface

Power Supply should be disconnected before service

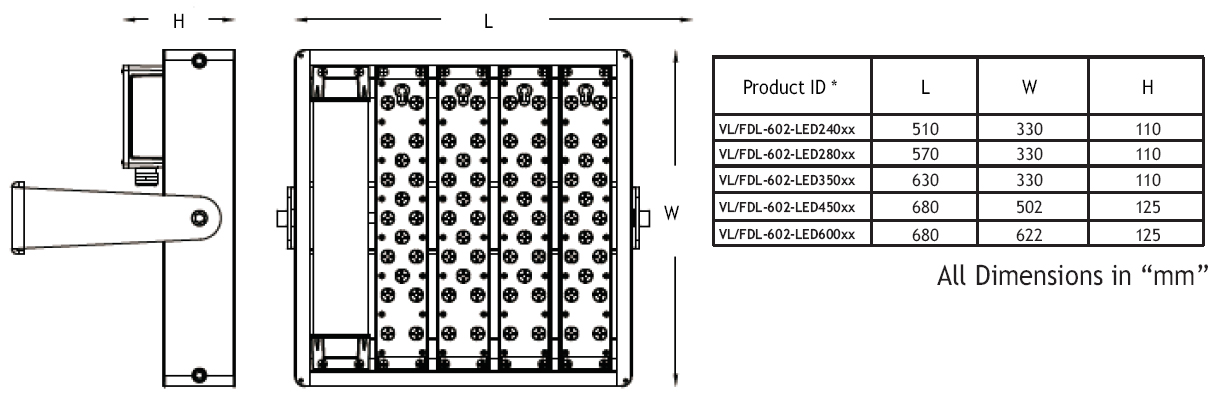

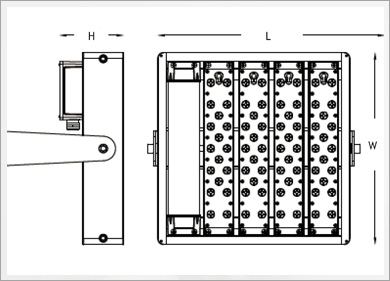

Product ID / Ordering Code	Product Description	Wattage(W)	Nominal Voltage(V)	Mains Current(A)	CCT (K)	Lumen (lm)	Weight (Kg)
VL/FDL-602-LED24057	Aurora LED Flood Light 240/CW IP 67	240	230	1.09	5700	22800	10.5
VL/FDL-602-LED28057	Aurora LED Flood Light 280/CW IP 67	280	230	1.25	5700	26600	11.0
VL/FDL-602-LED35057	Aurora LED Flood Light 350/CW IP 67	350	230	1.60	5700	33250	12.5
VL/FDL-602-LED45057	Aurora LED Flood Light 450/CW IP 67	450	230	2.05	5700	45000	19.7
VL/FDL-602-LED60057	Aurora LED Flood Light 600/CW IP 67	600	230	2.70	5700	60000	23.5

* xx also available in 3000K, 4000K, 5000K CCTs on request
