VENTURE LED LIGHTING

Indoor Commercial Lighting

FERN NEO RECESS LG7

LED Panel Edgelit
Fern Neo Recess LG7
 LED Panel Edgelit

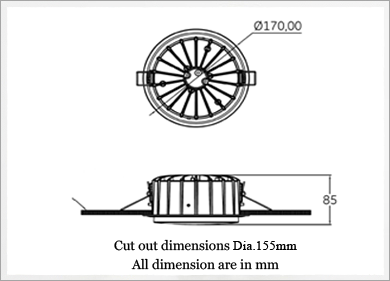

Dimension Details
 LED Panel Edgelit
Application

Description

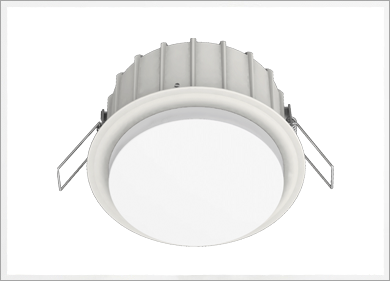

Fern Neo Recess LG7 is Office lighting LED solution, for recess mount LED downlight with drop down diffuser version. Offered in 10W, 12W, 15W, 18W, 20W and 24W in standard Lumen version. Comes with neatly designed pressure die cast aluminum housing. Designed to welcoming ambience in modern indoor space. Its Design attributes make it futuristic yet an elegant green product. It encompasses both functional and decorative values.

Specifications & Features

  • Options available from 10W to 24W LED Office Lighting.
  • Elegantly designed pressure die cast aluminum body with extended heat sink for better thermal dissipation.
  • Corrosion resistant polyester powder coated
  • Injection molded special PC component Diffuser, which is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space. .
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost .
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions..
  • With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.
  • The luminaire is rated for Efficacy >100 LPW, Pf >0.95 , THD <10%.
  • Installation & Maintenance

  • Recess Mounting with cutout dimension of 155mm, SS Mounting clips
  • Driver maintenance from top.

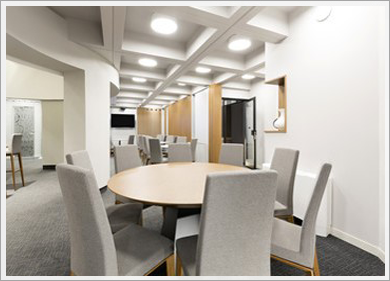

  • Applications

  • • Office Interior
  • • Airport terminal
  • • Healthcare
  • • Retail Stores
  • • Departmental store & Shopping malls
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLD2051 VLDR/213/10/57/00/STD/NWH/V0 10W 5700K 0.044 Amps < 10% >0.95 0.85kg
    VLD2052 VLDR/213/12/57/00/LG7/NWH/V0 12W 5700K 0.053 Amps < 10% >0.95 0.85kg
    VLD2053 VLDR/213/15/57/00/LG7/NWH/V0 15W 5700K 0.065 Amps < 10% >0.95 0.85kg
    VLD2054 VLDR/213/18/57/00/LG7/NWH/V0 18W 5700K 0.079 Amps < 10% >0.95 0.85kg
    VLD2055 VLDR/213/20/57/00/LG7/NWH/V0 20W 5700K 0.088 Amps < 10% >0.95 0.85kg
    VLD2056 VLDR/213/24/57/00/LG7/NWH/V0 24W 5700K 0.105 Amps < 10% >0.95 0.85kg
    Lamp Enclosed Rated
