LED Panel Edgelit
 LED Panel Edgelit

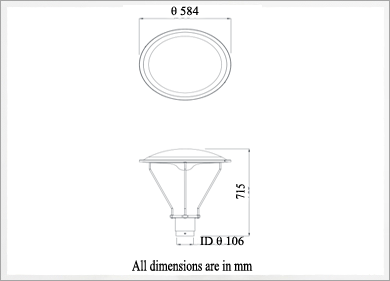

Dimension Details
 LED Panel Edgelit


Landscape lighting can enhance space layout and helps to improving the motion on city streets & walking areas creating feeling of security &aesthetics. Salvia -5 when lighted gives feels that luminaire is integral part of the landscape architecture helping to shape or define its character. It creates a welcoming spot with in the space and highlights the functional elements of that area.

Specifications & Features

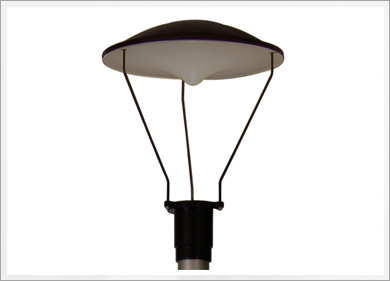

  • Salvia 5 is modern post top design luminaire
  • Post Top luminaire is available in 40W LED system.
  • Luminaire housing aluminum grey powder coated with toughened glass diffuser.
  • White powder coated reflector fixed on tripod directing the light downwards.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K /3000K available & CRI >70
  • The surge protection of the luminaire is 4KV inbuilt & external 10KV.
  • Operating voltage 140V -270V & THD < 10% & Pf >0.95
  • The luminaire Electrical Safety Class I & IP65.
  • Luminaire mounting suitable for 100mm OD pipe
  • Luminaire is provided with all accessories with easy installation & serviceability.
  • Installation & Maintenance

  • Loose the M6 screws in the bottom of the luminaire, connect the input wires to LEN connector, fix the luminaire to the pole dia 100 mm recommended, Tight the M6 screws and complete the installation.
  • Driver replacement -easily replace the remote driver.
  • Applications

  • Landscapes
  • Parks
  • Pathways
  • Gardens
  • Walkways
  • Downtown
  • Campuses
  • Compliance

  • IP 65
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLB6022 VLBP/612/40/57/NGG/V0 40W 5700K 0.175 Amps < 10% >0.95 5kg
    VLB6023 VLBP/612/40/30/NGG/V0 40W 5700K 0.175 Amps < 10% >0.95 5kg
    Lamp Enclosed Rated
