LED Panel Edgelit
 LED Panel Edgelit

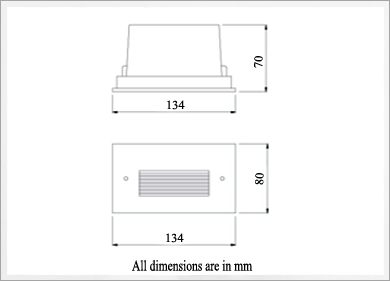

Dimension Details
 LED Panel Edgelit

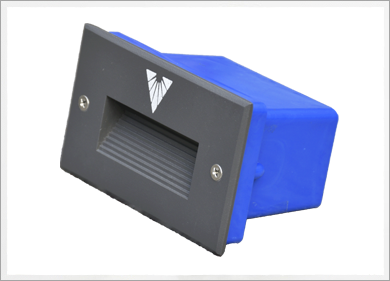

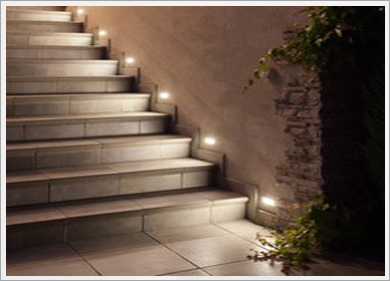

Cornus LED step light provides elegant & minimalistic look. The lighting works well for a smaller area and gives each landing and extra touch making the stairs look even more unique. Cornus illuminates the stairs & outdoor steps providing safety and ease of use.

Specifications & Features

  • Cronus is foot light luminaire, available in 5W LED system.
  • Luminaire housing aluminum with powder coated with Clear Toughened Glass.
  • Luminaire comes with suitable mounting box.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 3000K available & CRI >70.
  • The surge protection of the luminaire is 2KV inbuilt.
  • The luminaire Electrical Safety Class I & IP65.
  • Luminaire is mounted on surface.
  • Luminaire is provided with all accessories with easy installation & serviceability.
  • Installation & Maintenance

  • This fixture to be installed in 125x75x100mm deep wall mount hole.
  • Connect the input Wires to LEN Connector, Insert fixture into the wall mount hole.
  • Driver Replacement: Open front two screws and replace inbultdriver.
  • Applications

  • Indoor & Outdoor Stair
  • Pathways
  • Gardens
  • Compliance

  • IP 65
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD Power Factor Weight (Kg)
    VLB6027 VLBF/615/05/30/NBK/V0 5W 3000K 0.055 Amps < 15% >0.8 0.46kg
    Lamp Enclosed Rated
