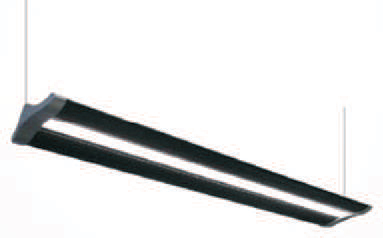

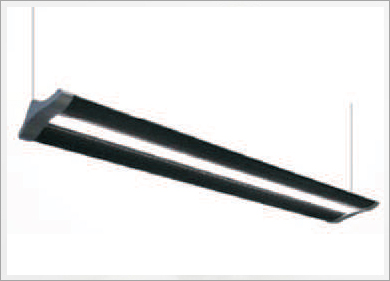

Suspended LED Luminaire

I-Deco

 I-Deco
 I-Deco
 I-Deco

Specifications & Features

  • Integrated injection thermo-bio plastic housing frame with highly efficient PC Opal Diffuser.
  • High energy saving Vis a Vis Traditional fluorescent-50% compared to CFL/FTL luminaires.
  • Direct and Indirect lighting offer more comfortable atomsphere
  • Constant current driver with PF > 95%
  • More than 85% driver efficiency with < 20% Current THD
  • Equipped with 2.5KV Surge Protection
  • Wide operating voltage 100 - 265Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 30,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 100°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection
  • Applications

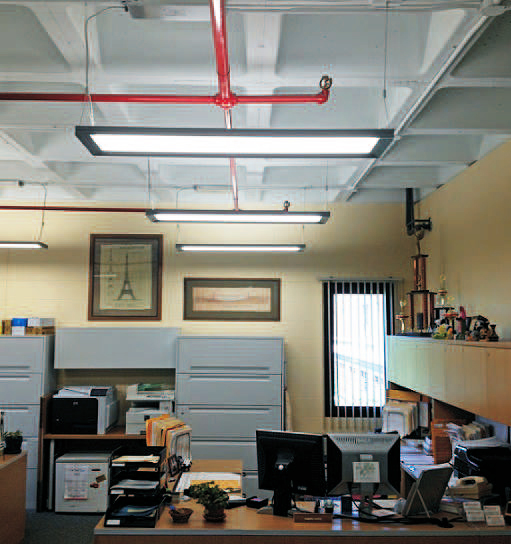

  • Offices
  • Institutional
  • Factories
  • Store
  • Engineering lab
  • Conference hall
  • Hospitality
  • Installation & Maintenance

  • Suspension cables with remote driver enclosure
  • Power Supply should be disconnected before service
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/ITL-600-LED05440 I-Deco Suspended LED Luminaire 54/NW L1200 54 230 0.247 4000 3900
    VL/ITL-600-LED05465 I-Deco Suspended LED Luminaire 54/CW L1200 54 230 0.247 6500 4200
    Lamp Enclosed Rated
