Indoor Commercial Lighting


LED Panel Edgelit
Clover Suspended
 LED Panel Edgelit
Dimension Details
 LED Panel Edgelit

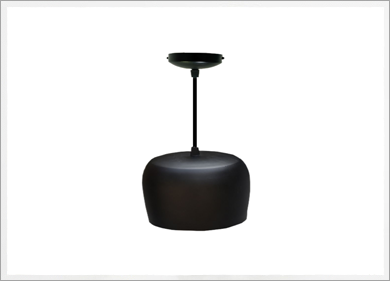

Clover is a suspended general lighting luminaire for indoor lighting made of aluminium. The luminaire with light source recalls the elegant form of illumination design to many different applications . The light from the luminaire makes the space intimate & welcoming.

Specifications & Features

  • Options are available with wattageof 9W with suitable lamp .
  • Dome shape reflector made of aluminum.
  • Lamp housing PBT with aluminum heat sink.
  • Lamp Available with CCT 5700K & 4000K & 3000K with CRI>80.
  • Input Voltage / Frequency Range100 – 270V AC/ 50Hz
  • Uniform, high quality light, with good color rendering capabilities reveals true color of your surrounding space.
  • Rated life of L70 @ >25000hours for Lamp ensures uninterrupted long service life.
  • Lamp provided with B22/ES cap.
  • Installation & Maintenance

  • Fix the given mounting clamp to the ceiling surface, using ribbed anchor screw system.
  • Complete the LEN connection, mount the luminaire to the clamp and fix two screws .
  • LED Bulb replacement, unscrew the bulb, use new E27 Threaded Bulb.

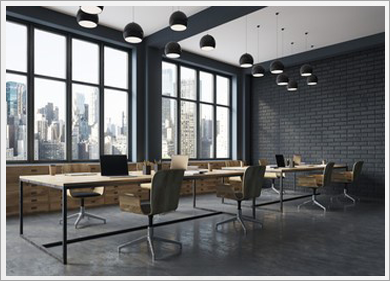

  • Applications

  • Office Lighting
  • Retail Stores
  • Shopping Malls
  • Compliance

  • IP 20
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLC1237 VLCP/130/10/57/00/NWH/V0 10W 5700K 0.045Amps < 10% >0.95 0.375kg
    VLC1238 VLCP/130/10/40/00/NWH/V0 10W 4000K 0.045Amps < 10% >0.95 0.375kg
    Lamp Enclosed Rated
