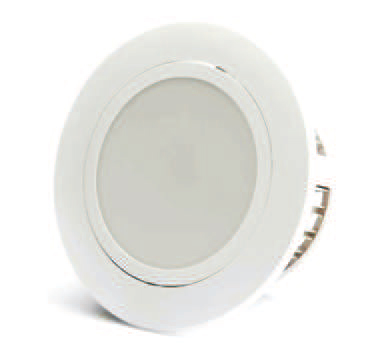

Galaxy

LED Panel Edgelit
LED Panel Edgelit
LED Panel Edgelit

Specifications & Features

  • Thermo-bio plastic frame with extruded Aluminum heat sink and highly efficient PC / Opal Diffuser.
  • High energy saving Vis a Vis Traditional fluorescent-60% compared to CFL / PLC Luminaires
  • External constant current driver
  • More than 85% driver efficiency
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection

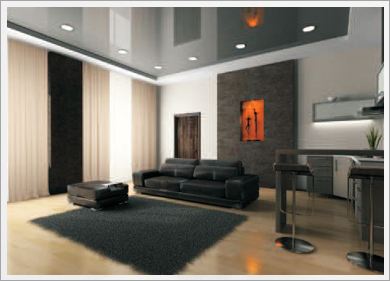

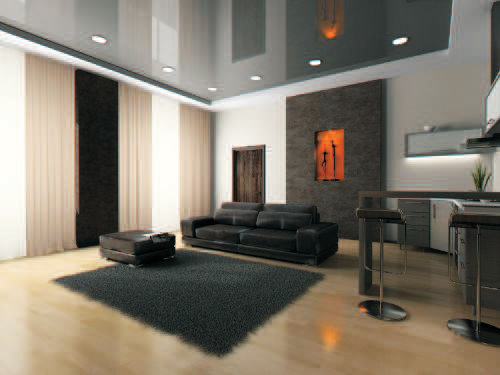

    • Applications

  • Office space
  • Residential Building
  • Institutional Building
  • Educational Institute
  • Hospitals
  • Retail Stores
  • Hotels

    • Installation & Maintenance

  • Feasible for Recess mounting
  • Suitable for POP & Gypsum False Ceiling
  • Power Supply should be disconnected before service

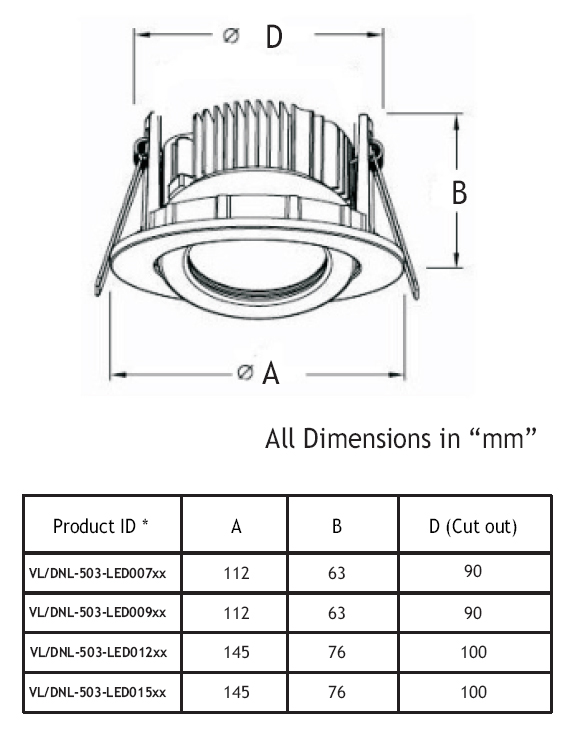

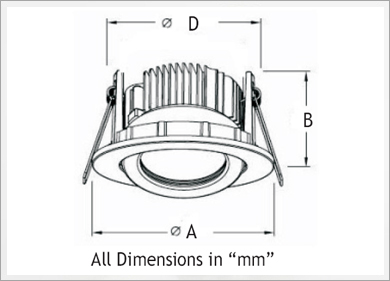

    • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current (A) CCT (K) Lumen (lm)
    VL/DNL-503-LED00757 Galaxy LED Downlight 07/ CW L112 7 230 0.06 6500 560
    VL/DNL-503-LED00957 Galaxy LED Downlight 09/ CW L112 9 230 0.07 6500 720
    VL/DNL-503-LED01257 Galaxy LED Downlight 12/ CW L145 12 230 0.10 6500 960
    VL/DNL-503-LED01557 Galaxy LED Downlight 15/ CW L145 15 230 0.12 6500 1200
    Lamp Enclosed Rated

    * xx Also available in 3000K & 4000K CCTs

    Please call us on +91 44 2262 3096 or Email us at marketing@vlindia.com

    Our customer service team are ready to assist with all Venture Lighting product enquiries.
