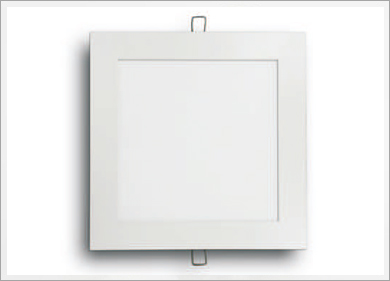

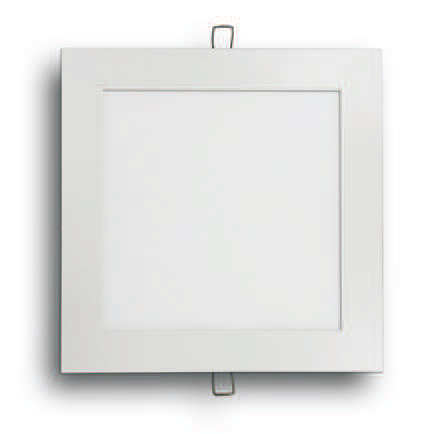

LED Panel Light

Slim Square

Slim Square
 Slim Square
Slim Square

Specifications & Features

  • Ultra slim design with die cast Aluminum frame and highly efficient PMMA / Opal Diffuser
  • High energy saving Vis a Vis conventional fluorescent-60% compared to CFL/PLC luminaires
  • External constant current driver
  • More than 85% driver efficiency
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection

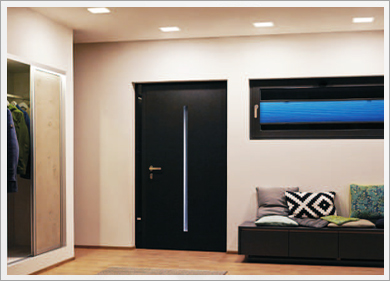

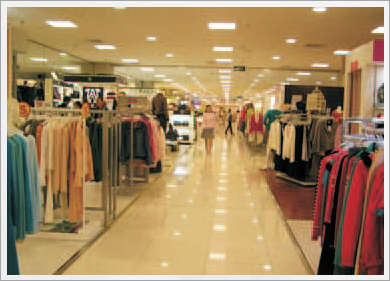

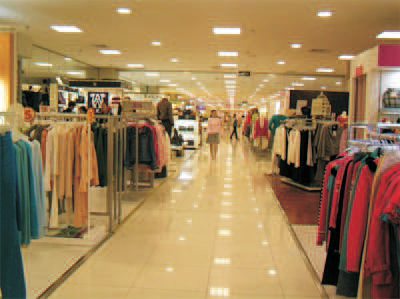

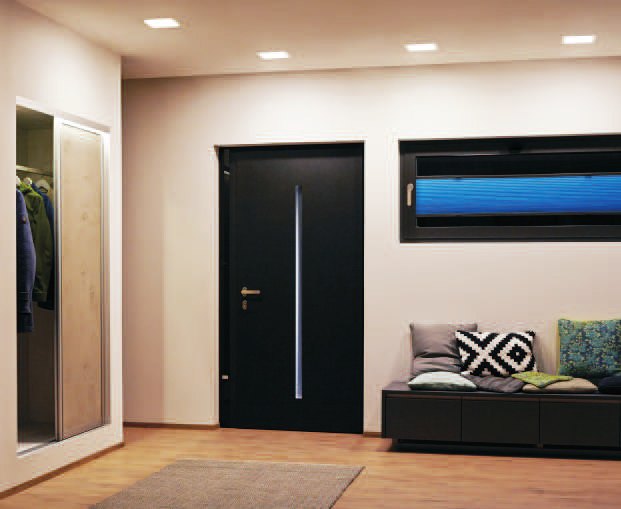

  • Applications

  • Retail Stores
  • Hotels
  • Office space
  • Residential Building
  • Institutional Building
  • Educational Institute
  • Hospitals
  • Installation & Maintenance

  • Feasible for Recess mounting
  • Suitable for POP & Gypsum False Ceiling
  • Power supply should be disconnected before service
  • Technical & Ordering Information

    Product ID * / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/PNLS-401-LED00557 Slim Sq LED Panel 5/ CW L110 5 230 0.04 6500 400
    VL/PNLS-401-LED00757 Slim Sq LED Panel 7/ CW L120 7 230 0.06 6500 560
    VL/PNLS-401-LED00957 Slim Sq LED Panel 9/ CW L150 9 230 0.07 6500 720
    VL/PNLS-401-LED01257 Slim Sq LED Panel 12/ CW L175 12 230 0.10 6500 960
    VL/PNLS-401-LED01557 Slim Sq LED Panel 15/ CW L200 15 230 0.12 6500 1200
    Lamp Enclosed Rated

    * xx Also available in 3000K & 4000K CCTs

    LED Panel Light

    Slim Square

    Slim Square
     Slim Square
    Slim Square

    Specifications & Features

  • Ultra slim design with die cast Aluminum housing and highly efficient PMMA / Opal Diffuser.
  • High energy saving Vis a Vis conventional fluorescent-60% compared to CFL/PLC Luminaires
  • External constant current driver with > 95% power factor.
  • More than 85% driver efficiency with <15% current THD
  • Wide operating voltage 100 - 285Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to +45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection
  • Applications

  • Office space
  • Residential Building
  • Institutional Building
  • Educational Institute
  • Hospitals
  • Retail Stores
  • Hotels
  • Installation & Maintenance

  • Feasible for Recess mounting
  • Suitable for POP & Gypsum False Ceiling
  • Power Supply should be disconnected before service
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/PNLS-401-LED01830 Slim Sq LED Panel 18/ WW L225

    18


    230


    0.085
    3000 1450
    VL/PNLS-401-LED01840 Slim Sq LED Panel 18/ NW L225 4000 1550
    VL/PNLS-401-LED01857 Slim Sq LED Panel 18/ CW L225 6500 1550
    VL/PNLS-401-LED02430 Slim Sq LED Panel 24/ WW L300

    24


    230


    0.115
    3000 1800
    VL/PNLS-401-LED02440 Slim Sq LED Panel 24/ NW L300 4000 1920
    VL/PNLS-401-LED02457 Slim Sq LED Panel 24/ CW L300 6500 1920
    Lamp Enclosed Rated
