HID Lighting

Side Mounting High Bay

Luminaires

Side Mounting High Bay
Side Mounting High Bay
Side Mounting High Bay

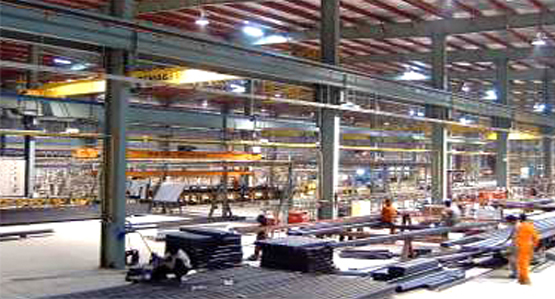

Applications

  • Steel plants
  • Thermal power stations
  • Warehouses
  • Industries
  • Fertilizer plants
  • Aircraft hangers
  • Construction

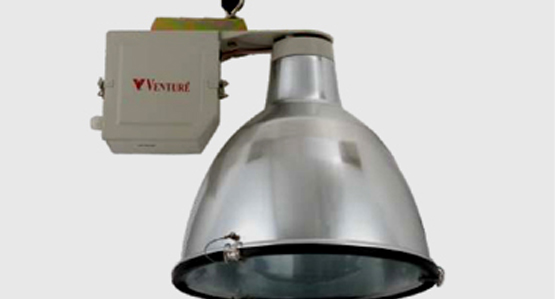

  • Side mounted die cast aluminium corrosion resistant housing accommodating lamp holder, copper wound ballast, PF correction capacitor and electronic ignitor prewired upto terminal block.
  • Epoxy Powder coated painting
  • M.s. eyebolt for mounting
  • LE40 Porcelain Lamp holder base
  • Earthing terminal

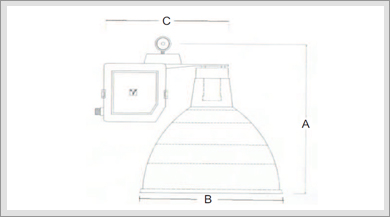

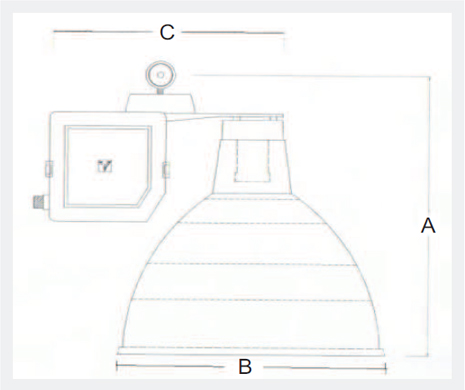

  • Dimension

    A B   C
    495 420 370

    Dimensions (mm) +/- 5%

    Reflector

  • Electrochemically brightened and high purity anodized aluminium reflector provides excellent light distribution.
  • Open Rated

    Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage
    VL/HBOR/SM-150W MH/SV 1 150 220 / 240
    VL/HBOR/SM-200W MH 1 200 220 / 240
    VL/HBOR/SM-250W MH/SV 1 250 220 / 240
    VL/HBOR/SM-320W MH 1 320 220 / 240
    VL/HBOR/SM-400W MH/SV 1 400 220 / 240
    Lamp Enclosed Rated

    Enclosed Rated

    Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage
    VL/HBTE/SM-150W MH/SV 1 150 220 / 240
    VL/HBTE/SM-200W MH 1 200 220 / 240
    VL/HBTE/SM-250W MH/SV 1 250 220 / 240
    VL/HBTE/SM-320W MH 1 320 220 / 240
    VL/HBTE/SM-400W MH/SV 1 400 220 / 240
    Lamp Enclosed Rated

    * MH/SV configuration for 250 & 400 W is also available
