SALVIA-1

LED Panel Edgelit

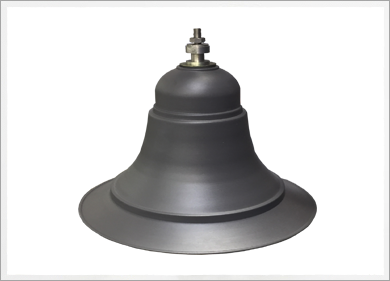

Salvia-1
 LED Panel Edgelit

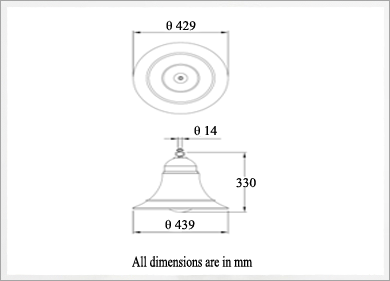

Dimension Details
 LED Panel Edgelit

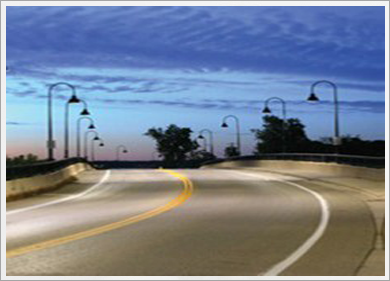

Application

Description

The role of post top is to create comfortable & safe ambience that allure people. Salvia -1 is a modern design post top luminaire with antique design elegant look. When mounted on pole it gives a pendant look feel and makes classy & aesthetically appealing the area where it is lit.

Specifications & Features

  • Salvia 1 is aesthetically & antique designed luminaire for urban landscape.
  • Post Top luminaire is available in 60W LED system.
  • Luminaire body construction is made of aluminum& in graphite grey finish & diffuser in clear grade PMMA.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K /3000K available & CRI >70
  • Secondary lens used for asymmetric distribution, ideal for street light application.
  • The surge protection of the luminaire is inbuilt 4KV & external surge 10KV..
  • Operating voltage 140V -270V & THD < 10% & Pf >0.9
  • The luminaire Electrical Safety Class I & IP65.
  • Mounted on Pole with given bolt &nut arrangement.
  • Luminaire is provided with all accessories with easy installation & serviceability.
  • Installation & Maintenance

  • Unscrew the M14 nut form the luminaire, and clamp to the pole and fix the Luminaire with M14 nut.
  • Connect the Input wire to the LEN connector and complete the installation.
  • Driver replacement: Remove the top mounted stud , luminaire casing will be unassembled, replace the driver.
  • Applications

  • Landscapes
  • Parks
  • Pathways
  • Gardens
  • Walkways
  • Downtown
  • Campuses
  • Compliance

  • IP 65
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD Power Factor Weight (Kg)
    VLB6014 VLBP/608/60/57/NGC/V0 60W 5700K 0.262A mps < 10% >0.95 2.85kg
    VLB6015 VLBP/608/60/30/NGC/V0 60W 3000K 0.262A mps < 10% >0.95 2.85kg
    Lamp Enclosed Rated
