Indoor Commercial Lighting

DALE SUSPENDED

LED Panel Edgelit

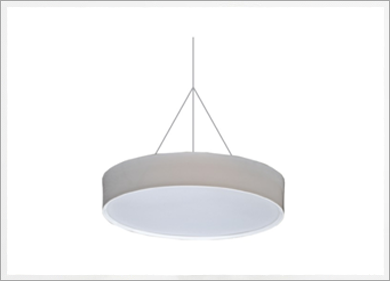

Dale Suspended
 LED Panel Edgelit

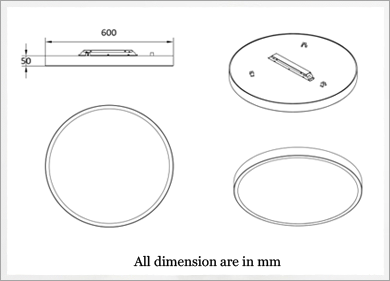

Dimension Details
 LED Panel Edgelit

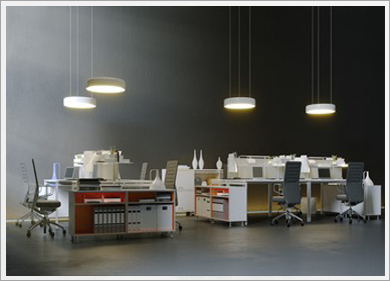

Application

Description

Dale Suspended is soft round shape luminaire with enhancing visual impression to the surrounding. With its visual & modern appearance makes it ideal for use across various commercial & hospitality spaces. The minimalistic designed luminaire with balanced light provides soothing and comfortable atmosphere. The light as it shines downwards in a very softand soothing pattern that makes very high & pleasant ambience to surrounding.

Specifications & Features

  • Options are available with wattages 25W, 32W, 40W, 72W, 120W in 300mm, 450mm, 600mm, 900mm & 1200mm dia respectively, with best in class Lumen per watt- more light for less cost.
  • CRCA housing body for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Uniform, high quality light, with good color rendering capabilities reveals true color of your surrounding space.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 2kV internal with electrical class I rating for additional safety precautions.
  • In built constant current driver is provided in the luminaire housing or driver can be provided externally to place driver remotely also.
  • The luminaire is rated for Efficacy >100 & Pf >0.95 , THD <10%.
  • Installation & Maintenance

  • Easy installation of three point to Single point suspension system.
  • Easy height adjustable Universal Suspended system upto 1500 mm.
  • Easy LED driver replacement on top of the Fixture.
  • Applications

  • Office Lighting
  • Retail Stores
  • Airport Terminals
  • Shopping Malls
  • Showrooms
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLC1227 VLCP/127/25/57/00/0.3M/NWH/V0 25W 5700K 0.109 Amps < 10% >0.95 2.0kg
    VLC1228 VLCP/127/32/57/00/0.45M/NWH/V0 32W 5700K 0.140 Amps < 10% >0.95 3.2kg
    VLC1229 VLCP/127/40/57/00/0.6M/NWH/V0 40 W 5700K 0.175 Amps < 10% >0.95 5.3kg
    VLC1230 VLCP/127/72/57/00/0.9M/NWH/V0 72 W 5700K 0.315 Amps < 10% >0.95 7.2kg
    VLC1231 VLCP/127/120/57/00/1.2M/NWH/V0 120W 5700K 0.525 Amps < 10% >0.95 9.5kg
    Lamp Enclosed Rated
