Vinca LED Highbay
 LED Panel Edgelit

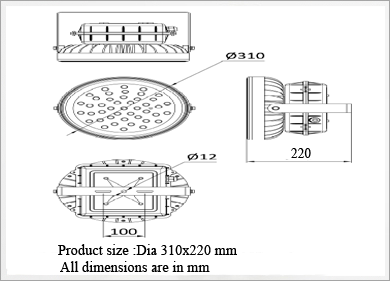

Dimension Details
 LED Panel Edgelit


Vinca Highbay is superior industrial Highbay with high optical & thermal performance. Innovative & efficient design luminaire for industrial applications, delivers high brightness & excellent illumination. Wide range of optical distributions for different industrial applications. Vincahighbay is designed with high safety & reliability standards.

Specifications & Features

  • Highbay/Mediumbay with system efficiency of 130LPW offering excellent cost of ownership.
  • The luminaire is available in 80W ,100W,120W,150W.
  • Elegantly designed pressure die cast aluminum housing body with optimal heat sink for better thermal dissipation.
  • Tempered Protective Toughened glass, thermal shock and impact resistant fixed to the housing with SS screws.
  • Uniform thermal distribution of the LED light engine, providing superior lumen maintenance (L70 > 50k hours)*
  • In-built electrical protections like over voltage, short circuit, over load, miswiring , surge protection of min 6kV with electrical class I rating for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • Provided with fins for better thermal dissipation and ventilation.
  • Silicon gasket ensures IP rating in elevated temperature for extended life of fixture.
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.
  • The driver used is potted, isolated and surge protection internal 4KV & external 6KV with driver efficiency > 88%.
  • Power factor >0.95 , THD < 10%, operating voltage range 110V -270V.
  • Potted isolated driver with miswiring , short circuit & overload protection which ensures high grade of reliability .
  • Installation & Maintenance

    Standard Mounting:

  • Direct /Surface Mounting suitable for 2 nos of M8 Bolt** with 100 mm pitch.
  • Alternate Mounting Provisions:

  • Suitable for suspension with M12 eye bolt**
  • Suitable for conduit mounting with pipe Ø 20mm**
    **Not Part of standard accessory
  • Applications

  • Assembly Area
  • Production Area& Industrial Sheds

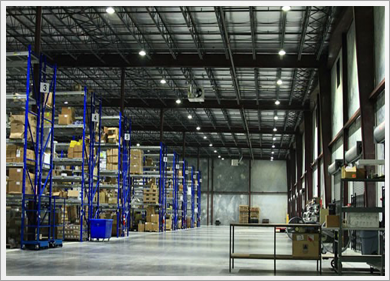

  • Warehouses
  • Workshops & Heavy Industries
  • Compliance

  • IP 66
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLI3069 VLIS/316/80/57/30/90D/NGR/V0 80W 5700 K 0.350 Amp < 10% >0.95 6.125
    VLI3070 VLIS/316/100/57/30/90D/NGR/V0 100W 5700 K 0.435 Amp < 10% >0.95 6.125
    VLI3071 VLIS/316/120/57/30/60D/NGR/V0 120W 5700 K 0.520 Amp < 10% >0.95 6.125
    VLI3072 VLIS/316/150/57/30/60D/NGR/V0 150W 5700 K 0.655 Amp < 10% >0.95 6.125
    Lamp Enclosed Rated
