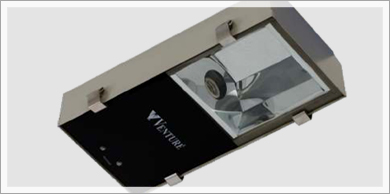

Low Bay

Luminaires

BALLAST CLASS ‘B’
BALLAST CLASS ‘B’
BALLAST CLASS ‘B’

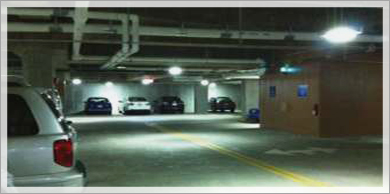

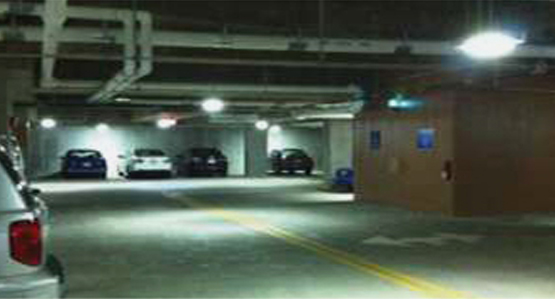

Applications

  • Railway Platforms
  • Storage areas
  • Loading bays
  • Parking / Sports halls
  • Cargo Handling bays
  • Features

  • CRCA sheet housing, felt gasket, heat resistant & toughened glass cover, Copper wound ballast, PF correction capacitor, Electronic ignitor , prewired upto terminal block.
  • Epoxy Powder coated painting
  • Stainless steel toggles & M.S. bracket for
  • Suspension E27 Porcelain Lamp holder base
  • Earthing terminal
  • Reflector

  • Electrochemically brightened and high purity anodized aluminium hammered finish reflector for excellent light distribution.
  • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C D
    VL/LB-50W MH 1 50 220 / 240 395 115 197 350
    VL/LB-70W MH / SV 1 70 220 / 240 395 115 197 350
    VL/LB-100W MH 1 100 220 / 240 395 115 197 350
    VL/LB-150W MH / SV 1 150 220 / 240 395 115 197 350
    Lamp Enclosed Rated

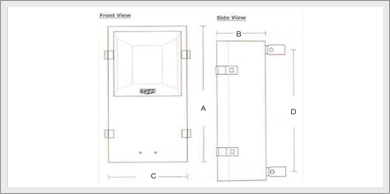

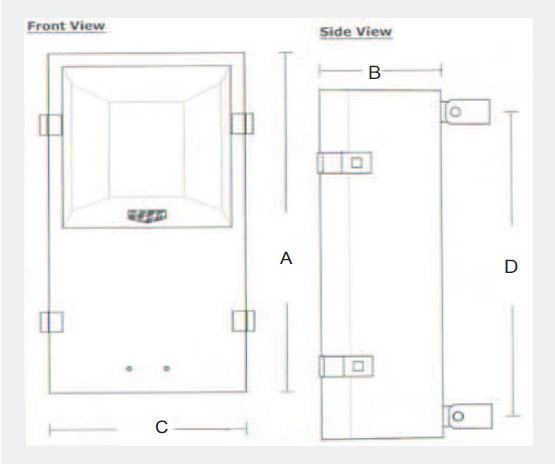

    Dimensions (mm) +/- 5%
