HID Lighting

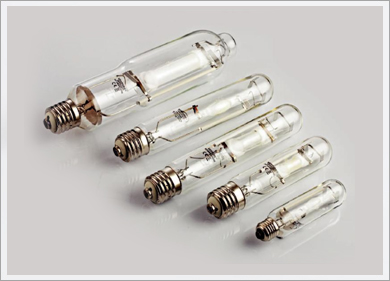

Tubular Lamp

Outdoor Lighting

Applications

  • Flood lighting
  • Security lighting
  • Sports lighting
  • Amenity lighting
  • Architectural lighting
  • Yard lighting
  • Hoarding lighting
  • Energy retrofits
  • Features

  • Faster warm-up and hot re-strike
  • Energy saving wattages
  • Wide range of color temperatures
  • Superior lumen maintenance
  • Retrofit versions for HPS/HPMV lamps
  • Available for 70-1000W
  • Better color uniformity
  • Better cold starting
  • Tubular E27 Based Lamps

    Description Part code Initial Lumens* Avg. Life Hours* Color Temp. CRI LPW Burn Position Operating current(A) Carton Qty Control Gear
    HIT 70 W/U/LU/740 13742 5300 15000 4000 68 76 Universal 0.90 12 MH/HPSV
    HIT 150 W/U/LU/T38/740 62272 9000 15000 4000 68 93 Universal 1.80 12 MH/HPSV
    Lamp Enclosed Rated

    Tubular E40 Based Lamps

    Description Part code Initial Lumens* Avg. Life Hours* Color Temp. CRI LPW Burn Position Operating current(A) Carton Qty Control Gear
    HIT 150 W/U/LU/T46/740 71144 14000 15000 4000 68 93 Universal 1.80 12 MH / HPSV
    HIT 250 W/U/LU/740 48768 19000 10000 4000 68 76 Universal 3.10 12 MH / HPSV
    HIT 250 W/U/LU/752 10855 16800 10000 5200 75 67 Universal 3.10 12 MH / HPSV
    HIT 250 W/H75/PS/740 26240 22000 20000 4000 68 88 Hor ± 75* 2.10 12 MH / HPMV
    HIT 250 W/U/EURO/4K 33950 21000 10000 4000 68 84 Universal 2.10 12 MH / HPMV
    HIT 250 W/U/EURO/5K 59876 19000 7500 5000 75 76 Universal 2.10 12 MH / HPMV
    HIT 400 W/U/LU/740 98748 36000 15000 4000 68 90 Universal 4.20 12 MH / HPSV
    MHT 400 W/U/LU/T46/5K 81292 32000 15000 5200 75 80 Universal 4.20 12 MH / HPSV
    HIT 400 W/U/EURO/4K 25830 36000 15000 4000 68 90 Universal 3.20 12 MH / HPMV
    HIT 400 W/HOR/EURO/4K** 88410 40000 15000 4000 68 100 Hor ± 45* 3.20 12 MH / HPMV
    HIT 400 W/U/EURO/5K 73590 32500 15000 5000 75 81 Universal 3.20 12 MH / HPMV
    HIT 600 W/U/LU/740 54631 55000 12000 4000 68 92 Universal 6.20 6 MH / HPSV
    HIT 1000 W/U/LU/740 83265 90000 8000 4000 68 80 Universal 9.50 6 MH / HPSV
    Lamp Enclosed Rated
    * When operated in Vertical burn position
    ** When operated in Horizontal burn position
