FERN NEO PENDANT LG7

LED Panel Edgelit

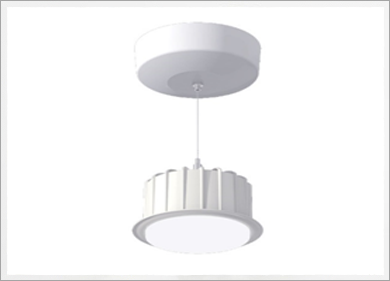

Fern Neo Pendant LG7
 LED Panel Edgelit

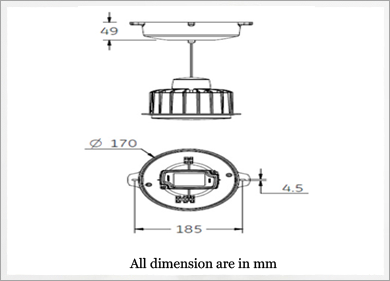

Dimension Details
 LED Panel Edgelit

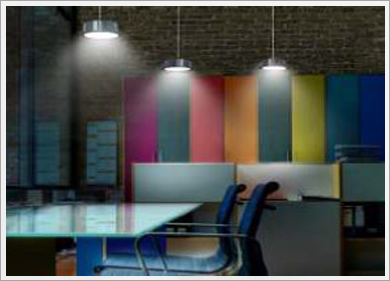

Application

Description

Fern Neo Pendant LG7 is Office lighting LED solution, for pendant mount LED downlight. Offered in 10W, 12W, 15W, 18W, 20W and 24W in standard Lumen version. Comes with neatly designed pressure die cast aluminum housing. Designed to welcoming ambience in modern indoor space. Its Design attributes make it futuristic yet an elegant green product. It encompasses both functional and decorative values.

Specifications & Features

  • Options available from 10W to 24W LED Office Lighting.
  • Elegantly designed pressure die cast aluminum body with extended heat sink for better thermal dissipation.
  • Corrosion resistant polyester powder coated
  • Injection molded special PC component Diffuser, which is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space.
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions..
  • With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.
  • The luminaire is rated for Efficacy >100 LPW, Pf >0.95 , THD <10%
  • Installation & Maintenance

  • Pendant Mounting with a fixing pitch of 185mm on the gear tray cover, Suspension with Multi-strand metal cables.
  • Driver maintenance from bottom by unscrewing the Gear cover.
  • Applications

  • Office Interior
  • Airport terminal
  • Healthcare
  • Retail Stores
  • Departmental store & Shopping malls
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLD2075 VLDP/215/10/57/00/LG7/NWH/V0 10W 5700K 0.044 Amps < 10% >0.95 0.85kg
    VLD2076 VLDP/215/12/57/00/LG7/NWH/V0 12W 5700K 0.053 Amps < 10% >0.95 0.85kg
    VLD2077 VLDP/215/15/57/00/LG7/NWH/V0 15W 5700K 0.065 Amps < 10% >0.95 0.85kg
    VLD2078 VLDP/215/18/57/00/LG7/NWH/V0 18W 5700K 0.079 Amps < 10% >0.95 0.85kg
    VLD2079 VLDP/215/20/57/00/LG7/NWH/V0 20W 5700K 0.088 Amps < 10% >0.95 0.85kg
    VLD2080 VLDP/215/24/57/00/LG7/NWH/V0 24W 5700K 0.105 Amps < 10% >0.95 0.85kg
    Lamp Enclosed Rated
