Indoor Commercial Lighting

MIRABILIS NEO

LED Panel Edgelit
Mirabilis Neo
 LED Panel Edgelit

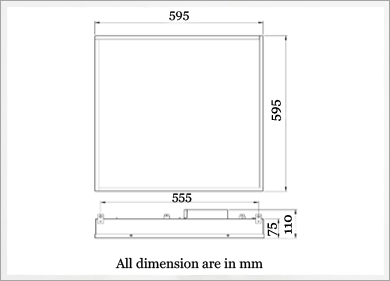

Dimension Details

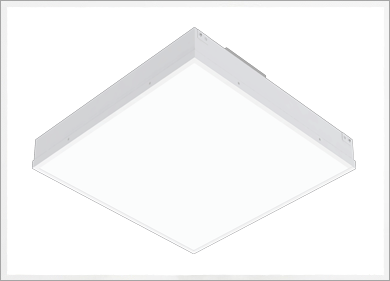

 LED Panel Edgelit

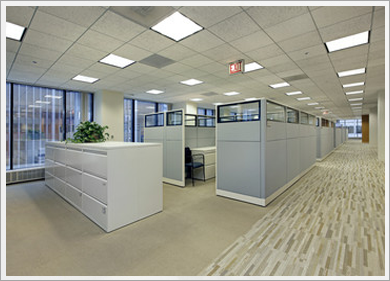

Application

Description

MIRABILIS is a lighting solution for recessed commercial application, offered in variants of 25W, 30W and 36W in normal and high lumen version. It’s unique minimalistic design creates an inviting atmosphere. Luminaire provides a high level of architectural flexibility through its color variants. Carefully selected diffuser made of special diffusion material helps to provide maximum light output with best in class uniformity across entire face of luminaire.

Specifications & Features

  • Minimalistic designed CRCA housing body for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output with uniform light across entire face of the fixture without any hotspots or banding.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space.
  • With low THD high efficiency driver, system is maintained at cooler temperatures & leads to longer driver life.
  • Superior lumen and color maintenance.
  • Best in class system level lumen per watt of up to 120LPW, means more light for less cost.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.
  • The luminaire is rated for Efficacy >100 LPW& 120LPW, Pf >0.95 , THD <10%.
  • Colors available are Cool White and Neutral White.
  • *Mirabilis Neo with PIR Sensor

  • Mirabilis Neo can also be supplied with Motion (occupancy) Sensor with Dimming option.
  • Featuring On/Off and 3 stage dimming control.
  • Delay settings &dimming level settings can be customized as per user.
  • *Mirabilis Neo HCL with RF Sensor

  • Mirabilis Neo can be provided with Human Centric Lighting (HCL) on standalone basis or suitable for Venture IoT lighting management system.
  • The system consists of LED Lighting fixtures with in-built occupancy sensors and wireless communication capability.
  • The deployed, “intelligent lighting fixture” forms a smart wireless network grid across the building, constantly collecting data to further enable automation, analysis, control and reporting.
  • One gateway is installed for upto to a maximum of 100 sensors. This number is subject to installation of luminaries within the coverage area of gateway. The gateway device acts as the bridge between sensors and the software server.
  • Installation & Maintenance

  • Compatible with standard Armstrong ceiling with cut out dimension of 575 mm x 575 mm.
  • Luminaire can be tilted diagonally and insert into the cut out and align the luminaire edges to the cut out edges.
  • Provision for chain mounting through four mounting bracket for easy installations.
  • Applications

  • School & Lecture Halls
  • Hospitals & Clinics
  • Office Interiors & Retail Shops.
  • Mueseum Display & Airport Terminals
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp THD Power Factor Mains Current Weight (Kg)
    VLC1134 VLCR/117/25/57/00/N/NWH/V0 25W 5700K < 10% >0.95 0.190 Amps 4.5kg
    VLC1135 VLCR/117/30/57/00/N/NWH/V0 30W 5700K < 10% >0.95 0.095 Amps 4.5kg
    VLC1136 VLCR/117/36/57/00/N/NWH/V0 36W 5700K < 10% >0.95 0.215 Amps 4.5kg
    VLC1137 VLCR/117/25/57/20/N/NWH/V0 25W 5700K < 10% >0.95 0.240 Amps 4.5kg
    VLC1138 VLCR/117/30/57/20/N/NWH/V0 30W 5700K < 10% >0.95 0.075 Amps 4.5kg
    VLC1139 VLCR/117/36/57/20/N/NWH/V0 36W 5700K < 10% >0.95 0.048 Amps 4.5kg
    Lamp Enclosed Rated

    Note:*Also availaible in PIR Sensor Version & Human Centric Lighting Version.
