DURIO INTEGRATED

LED Panel Edgelit
Durio Integrated
LED Panel Edgelit

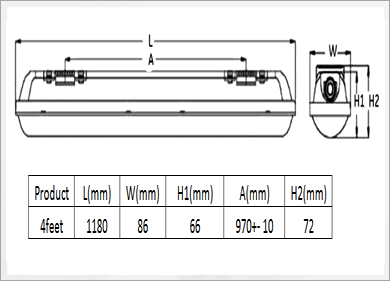

Dimension Details
LED Panel Edgelit

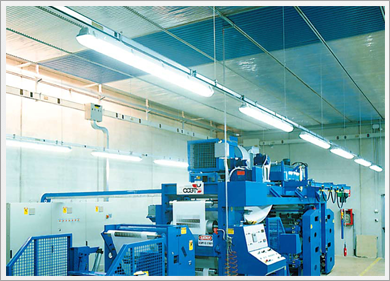

Application

Description

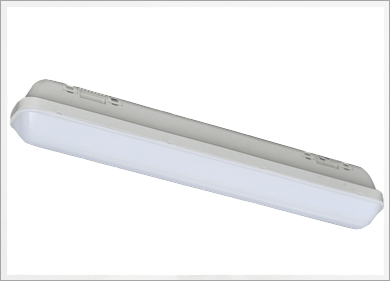

Venture make Durio Integrated a LED industrial corrosion-proof luminaire for ceiling or suspension mounting offered in 40W cool white in 4 feet housing . High impact, injection molded diffuser made of special diffusion material helpsto provide maximum light output. Luminaire is ideally suitable for industrial application with wide range of applications such as cold storage, food processing, pharma industries and so on. Due its toggle less design, risk of loose toggle or rusted toggle are completely eliminated. These LED fixtures are built to last long and can provide resistance to impact and moisture.

Specifications & Features

  • DurioIntegrated luminaire is offered in 40W, 4ft version.
  • This corrosion resistance housing comprises of chemically inert, mechanically stable polycarbonate body for long lasting life.
  • Diffused polycarbonate cover for glare free lighting, fixed to the housing through press fit snap arrangement without toggles for easy wiring and maintenance.
  • Aluminum extruded gear tray helps to extract heat from LED PCB to improve reliability and performance of overall system.
  • Superior lumen and color maintenance.
  • Rated life of L70 @ 50000 to ensures uninterrupted long service life.
  • With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.
  • Sturdy vandal resistant polycarbonate housing which longer luminaire life.
  • PG11 cable gland with silicone gasket ensures IP65, Class I rating.
  • Completely prewired along with all accessories, and wiring through 3 way 5 Amps, 250V PBT connector. Fixture is ready for loop in loop out connections.

    • Installation & Maintenance

  • Ceiling mounting with the help of 2No of M6 screw at 970mm (for 4ft fixture) pitch and pendent mounting with hooks.
  • Easy removal of cover during wiring or maintenance operations.

    • Applications

  • Cold storage
  • Laboratories
  • Paint factories
  • Semi open parking areas
  • Car washing bay
  • Catering kitchens

    • Compliance

  • IP 65
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLI3024 VLIS/307/40/57/4F/DP/00/NGR/V0 40W 5700K 0.158 Amps < 10% >0.95 1.5kg
    Lamp Enclosed Rated
