HID Lighting

Well Glass

Luminaires

Top Mounting High Bay
Top Mounting High Bay
Top Mounting High Bay

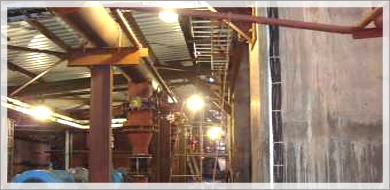

Applications

  • Power plants
  • Steel plants
  • Fertilizer plants

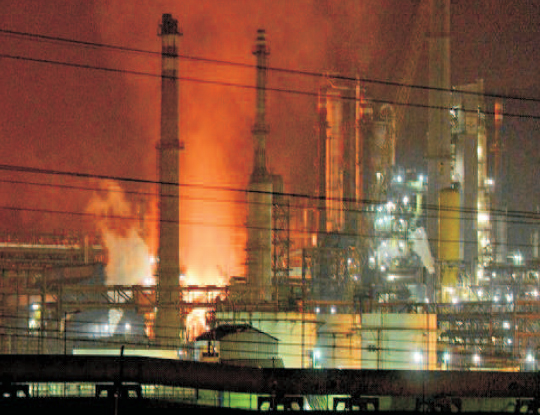

  • Refineries

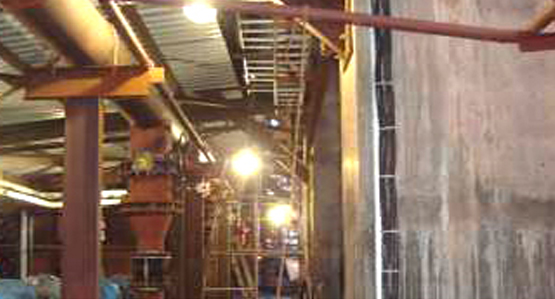

  • Cable conveyor galleries

    • Construction

  • Pressure die cast aluminium corrosion resistant housing, heat resistant glass dome & wire guard fitted with copper wound ballast, PF correction capacitor and electronic ignitor prewired upto terminal block.
  • Epoxy Powder coated painting
  • LE27 Porcelain Lamp holder base
  • Earthing terminal
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodized aluminium reflector provides excellent light distribution.
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/WG-50W MH 1 50 220 / 240 300 320 160
    VL/WG-70W MH/SV 1 70 220 / 240 300 320 160
    VL/WG-100W MH 1 100 220 / 240 300 320 160

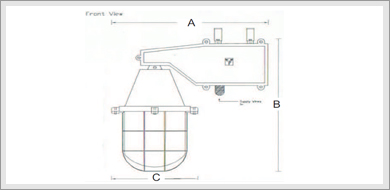

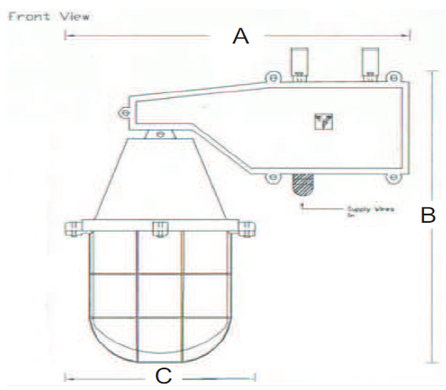

    Lamp Enclosed Rated

    Dimensions (mm) +/- 5%

    Well Glass - Luminaires

    Top Mounting High Bay
    Top Mounting High Bay
    Top Mounting High Bay

    Applications

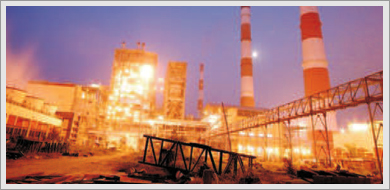

  • Power plants
  • Steel plants
  • Fertilizer plants
  • Refineries
  • Cable conveyor galleries

    • Construction

  • Pressure die cast aluminium corrosion resistant housing, heat resistant glass dome & wire guard fitted with copper wound ballast, PF correction capacitor and electronic ignitor prewired upto terminal block.
  • Epoxy Powder coated painting
  • E27 Porcelain Lamp holder base
  • Earthing terminal
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodized aluminium reflector provides excellent light distribution.
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/WG-150W MH/SV 1 150 220 / 240 310 390 200

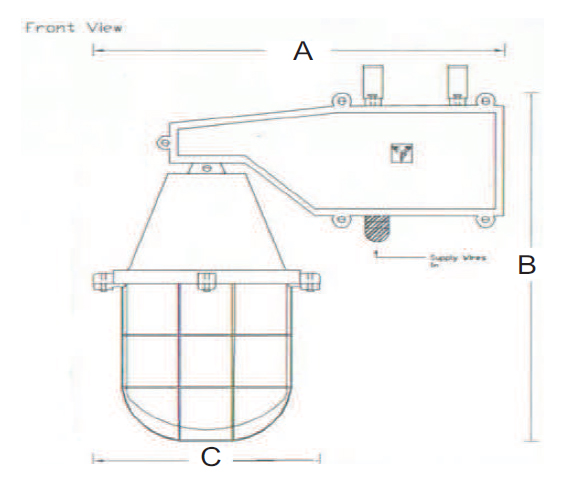

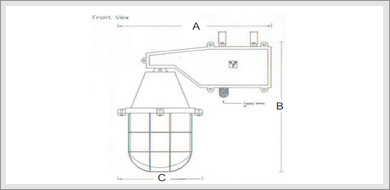

    Lamp Enclosed Rated

    Dimensions (mm) +/- 5%

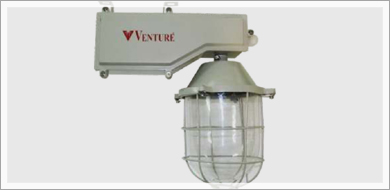

    Integral Well Glass - Luminaires

    Top Mounting High Bay
    Top Mounting High Bay
    Top Mounting High Bay

    Applications

  • Power plants
  • Steel plants
  • Fertilizer plants

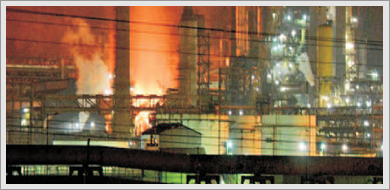

  • Refineries
  • Cable conveyor galleries

    • Construction

  • Pressure die cast aluminium corrosion resistant housing, heat resistant glass dome & wire guard fitted with copper wound ballast, PF correction capacitor and electronic ignitor prewired upto terminal block.
  • Prewired upto terminal block
  • Optional white powder coated external reflector
  • Epoxy Powder coated painting
  • E27 Porcelain Lamp holder base
  • Earthing terminal
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodized aluminium reflector for excellent light distribution.
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B
    VL/WGB-50W MH 1 50 220 / 240 350 200
    VL/WGB-70W MH / SV 1 70 220 / 240 350 200

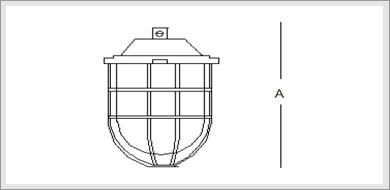

    Lamp Enclosed Rated

    Dimensions (mm) +/- 5%
