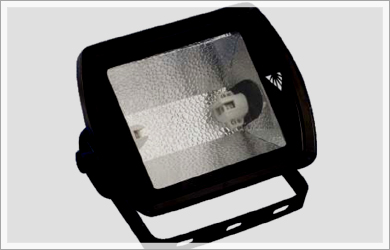

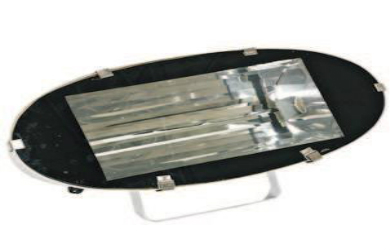

HID Lighting

Flood Light

Luminaires

Flood Light
Flood Light
Flood Light

Applications

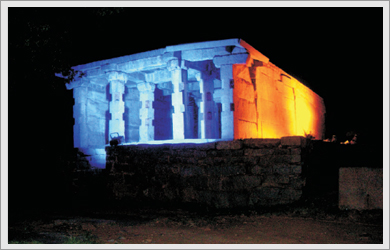

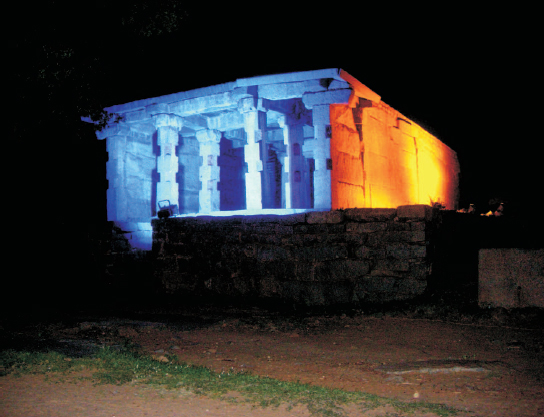

  • Building facade
  • Construction sites
  • Landscape
  • Shopping areas
  • Security
  • Parking areas

    • Construction

  • Single piece die cast aluminium corrosion resistant housing & frame, high purity aluminium reflector, Heat resistant & toughened glass, silicon rubber gasket and M.s. mounting bracket.
  • Epoxy powder coated painting
  • Rx7s Lamp holder base
  • Earthing terminal
  • Prewired upto terminal block
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodized aluminium reflector provides efficient light distribution.

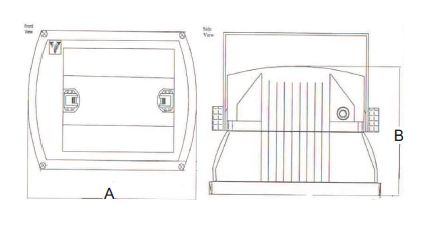

    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B
    VL/HLT-70W MH 1 150 220 / 240 285 230
    VL/HLT-150W MH 1 200 220 / 240 285 230
    Lamp Enclosed Rated

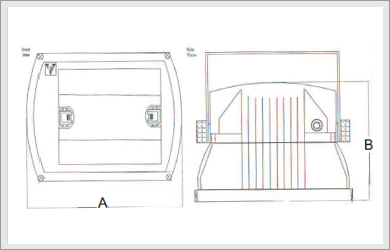

    Dimensions (mm) +/- 5%

    Flood Light - Luminaires

    Flood Light
    Flood Light
    Flood Light

    Applications

  • Construction sites
  • Coal yards
  • Railway marshalling yards
  • Airport aprons

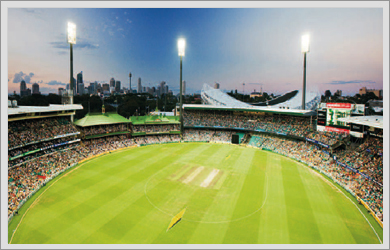

  • Sports stadiums
  • Facade lighting
  • Security lightings

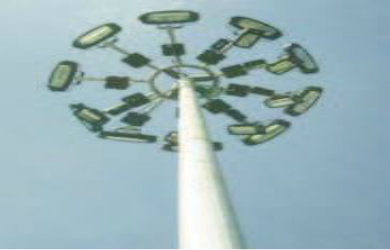

  • High mast lighting

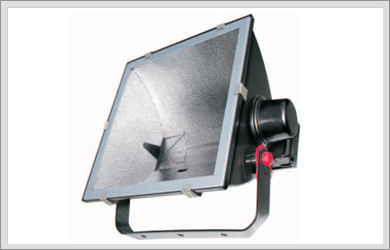

    • Construction

  • Die cast aluminium corrosion resistant housing, silicone rubber gasket, heat resistant & toughened
  • Epoxy powder coated painting
  • Relamping from front side
  • E40 Porcelain Lamp holder base
  • Stainless steel toggles
  • Earthing terminal
  • Prewired upto terminal block
  • IP 65 protection

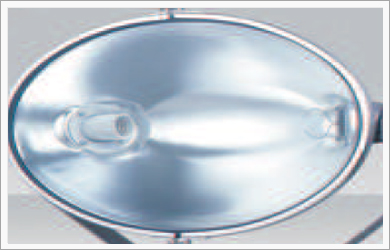

    • Reflector

  • Electrochemically brightened and high purity anodised aluminium reflector provides efficient light distribution.

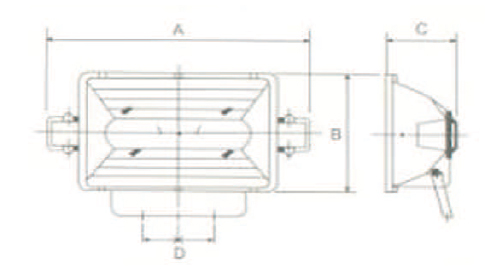

    • Part No Lamp Type* Lamp Qty Wattage Nominal Rated Voltage A B C D
    VL/AFLE/NI-2X200W MH 2 200 220 / 240 730 350 170 165
    VL/AFLE/NI-2X250W MH / SV 2 250 220 / 240 730 350 170 165
    VL/AFLE/NI-2X320W MH 2 320 220 / 240 730 350 170 165
    VL/AFLE/NI-2X400W MH / SV 2 400 220 / 240 730 350 170 165
    Lamp Enclosed Rated
    * MH/MV configuration for 250 & 400 W is also available
    Dimensions (mm) +/- 5%

    Flood Light - Luminaires

    Flood Light
    Flood Light
    Flood Light

    Applications

  • Construction sites
  • Coal yards
  • Railway marshalling yards
  • Airport aprons
  • Sports stadiums
  • Facade lighting
  • Security lightings

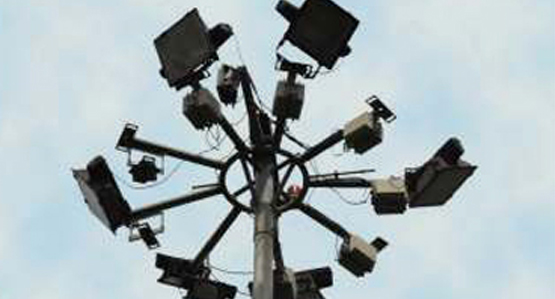

  • High mast lighting

    • Construction

  • Die cast aluminium corrosion resistant housing, silicone rubber gasket, heat resistant
  • Toughened glass cover with mounting M.s. cradle
  • Epoxy powder coated painting
  • Relamping from front side
  • E40 Porcelain Lamp holder base
  • Stainless steel toggles
  • Earthing terminal
  • Prewired upto terminal block
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodised aluminium reflector provides efficient light distribution.
    • Part No Lamp Type* Lamp Qty Wattage Nominal Rated Voltage A B C D
    VL/AFL/NI-2X200W MH 2 200 220 / 240 800 330 170 115
    VL/AFL/NI-2X250W MH/SV 2 250 220 / 240 800 330 170 115
    VL/AFL/NI-2X320W MH 2 320 220 / 240 800 330 170 115
    VL/AFL/NI-2X400W MH/SV 2 400 220 / 240 800 330 170 115
    Lamp Enclosed Rated
    * MH/MV configuration for 250 & 400 W is also available

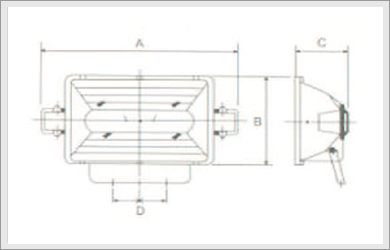

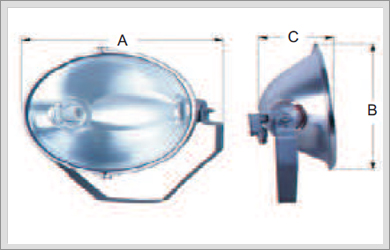

    Dimensions (mm) +/- 5%

    Flood Light - Luminaires

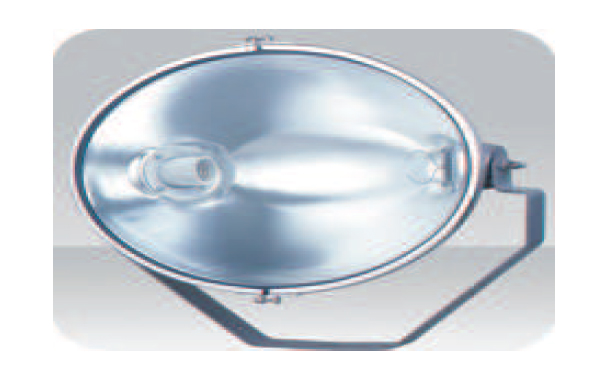

    Flood Light
    Flood Light
    Flood Light

    Applications

  • Construction sites
  • Coal yards
  • Railway marshalling yards
  • Airport aprons

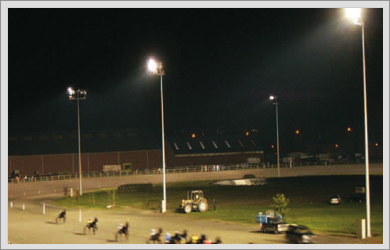

  • Sports stadiums
  • Facade lighting
  • Security lightings

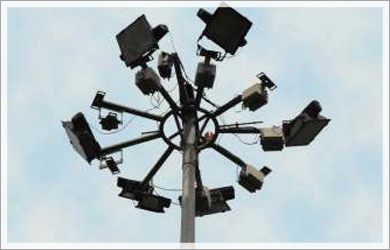

  • High mast lighting

    • Construction

  • Die cast aluminium corrosion resistant housing, silicone rubber gasket, heat resistant & toughened
  • Glass cover with mounting M.s. cradle
  • Non integral flood light with separate control gear
  • Epoxy powder coated painting
  • Relamping from front side
  • E40 Porcelain Lamp holder base
  • Earthing terminal
  • Prewired upto terminal block
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodised aluminium reflector provides efficient light distribution.

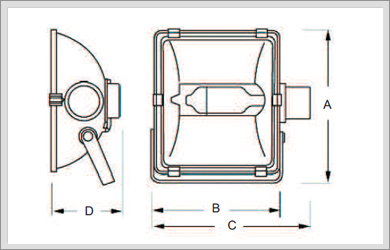

    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C D
    VL/AFL/NI-200W MH 1 200 220 / 240 405 330 170 100
    VL/AFL/NI-250W MH/SV 1 250 220 / 240 405 330 170 100
    VL/AFL/NI-320W MH 1 320 220 / 240 405 330 170 100
    VL/ AFL/NI-400W MH/SV 1 400 220 / 240 405 330 170 100
    VL/ AFL/NI-1000W MH/SV 1 1000 220 / 240 520 330 170 110
    Lamp Enclosed Rated
    * MH/MV configuration for 250 & 400 W is also available

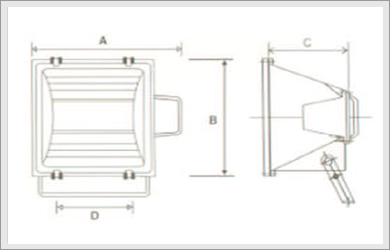

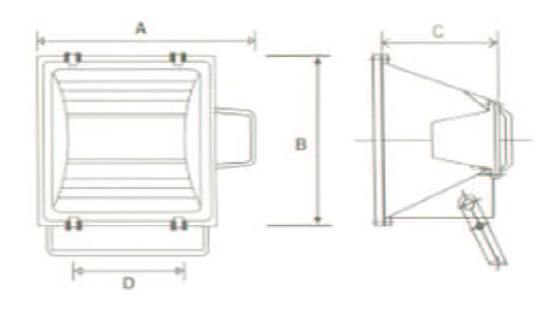

    Dimensions (mm) +/- 5%

    Flood Light - Luminaires

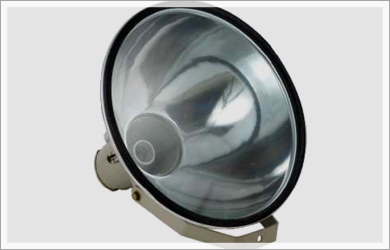

    Flood Light
    Flood Light
    Flood Light

    Applications

  • Construction sites
  • Coal yards
  • Railway marshalling yards
  • Airport aprons

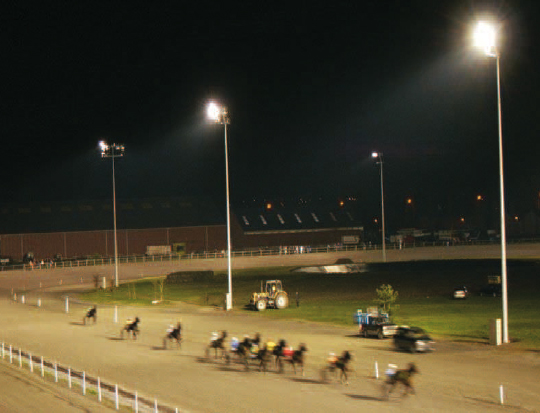

  • Sports stadiums
  • Facade lighting
  • Security lightings
  • High mast lighting

    • Construction

  • Die cast aluminium corrosion resistant housing, heat resistant & toughended
  • Glass cover, synthetic rubber gasket with mounting M.s. cradle
  • Epoxy powder coated painting
  • Relamping from front side
  • E40 Porcelain Lamp holder base
  • Earthing terminal
  • Prewired upto terminal block
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodised aluminium reflector provides efficient light distribution.

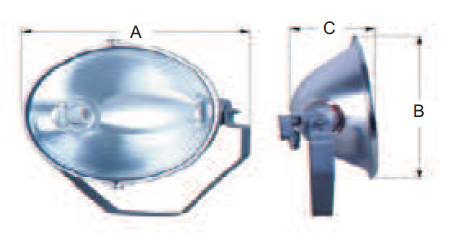

    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/SFL/NI-150W MH/SV 1 150 220 / 240 425 450 405
    VL/SFL/NI-200W MH 1 200 220 / 240 425 450 405
    VL/SFL/NI-250W MH/SV 1 250 220 / 240 425 450 405
    VL/SFL/NI-320W MH 1 320 220 / 240 425 450 405
    VL/SFL/NI-400W MH/SV 1 400 220 / 240 425 450 405
    VL/SFL/NI-1000W MH/SV 1 1000 220 / 240 535 645 435
    Lamp Enclosed Rated
    * MH/MV configuration for 250 & 400 W is also available

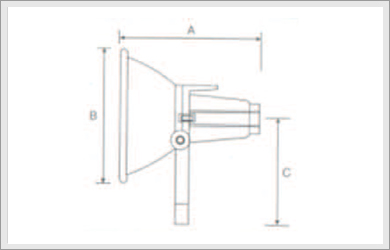

    Dimensions (mm) +/- 5%

    Flood Light - Luminaires

    Flood Light
    Flood Light
    Flood Light

    Applications

  • Construction site
  • Coal yards

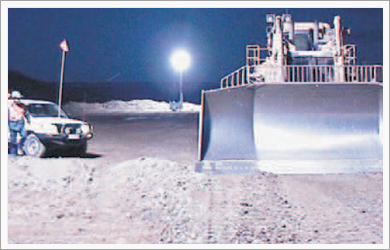

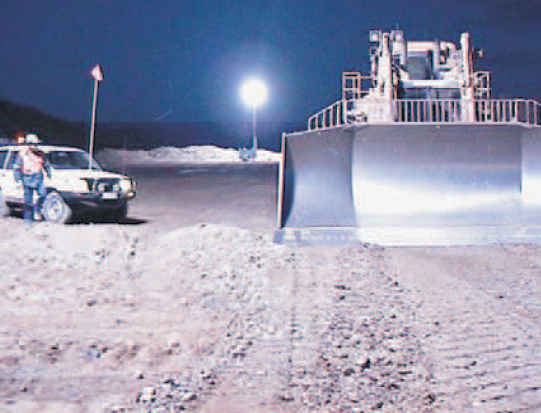

  • Movable Tower Lighting
  • Security lighting

    • Construction

  • Die cast aluminum corrosion resistant housing, shock resistance silicone rubber gasket, heat resistant & toughened clear glass cover, M.S. mounting cradle.
  • A strong heavy insulate lamp tip support with a shock resistant gasketed socket mount makes the fixture the ultimate choice for all demanding portable applications.
  • The Standard Compact BT-37 1,000Watt metal halide lamp produces 1,10,000 Lumens and is mounted horizontally for even distribution f direct and reflected light. Other lamp types and wattage are also available suitable to this fixture.
  • Epoxy powder coated
  • Relamping from front side
  • E40 Porcelain Lamp holder base
  • Stainless steel toggles
  • Earthing terminal
  • Prewired up to terminal block
  • IP 65 protection
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/TL/AFL/NI-1000W MH / SV 1 1000 220 / 240 520 420 180
    Lamp Enclosed Rated

    Dimensions (mm) +/- 5%

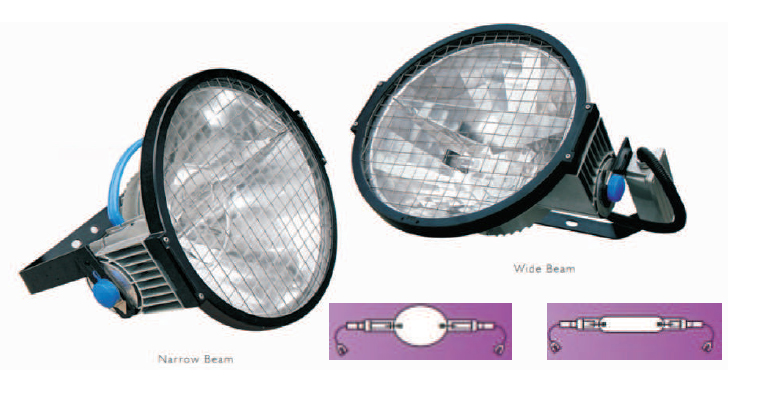

    Flood Light - Luminaires - Short Arc / Long Arc Lamps

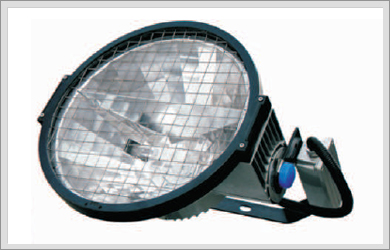

    Flood Light
    Flood Light
    Flood Light

    Applications

  • Construction site
  • Coal yards
  • Railway marshalling yard
  • Airport apron

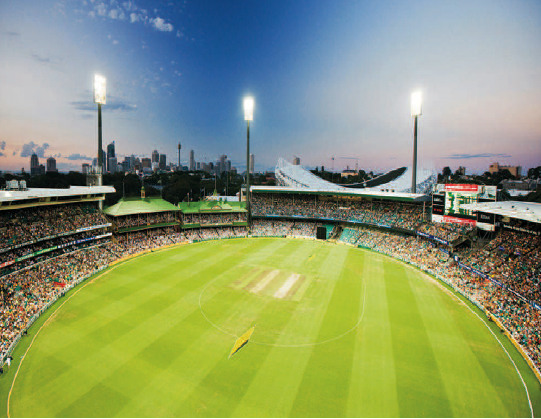

  • Sports stadium
  • Facade lighting
  • Security lighting
  • High mast lighting

    • Construction

  • Die cast aluminum corrosion resistant housing, heat resistant & toughened clear glass cover, heat resistant silicon rubber gasket, M.S. mounting cradle, SS mesh for safety.
  • Advanced Inner and Outer Powder coated
  • Relamping from back side
  • PsSFC20-6 (cable & lug) Lamp holder
  • Earthing terminal
  • Prewired upto terminal blocks
  • IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodised aluminium reflector
  • 99.85% efficient light distribution

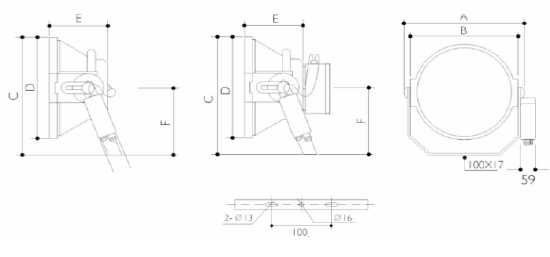

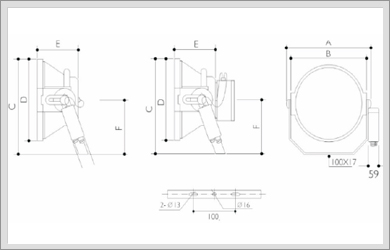

    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C D E F
    VL/AFL/NI/DE-2000W MH 1 2000 380/400/415 531 470 500 451 250 300
    Lamp Enclosed Rated

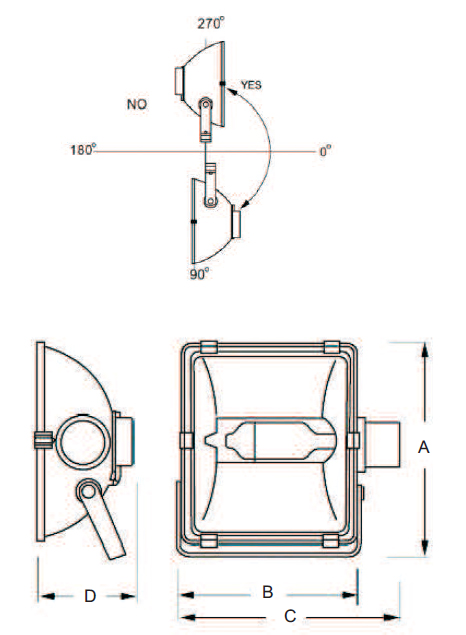

    Dimensions (mm) +/- 5%

    High Watt Flood Light - Luminaires

    Flood Light
    Flood Light
    Flood Light

    Applications

  • Construction site
  • Coal yards
  • Railway marshalling yard
  • Airport apron
  • Sports stadium
  • Facade lighting
  • Security lighting
  • High mast lighting

    • Construction

  • Die cast aluminium corrosion resistant housing, silicone rubber gasket, heat resistant & toughened glass cover, M.S. mounting cradle.
  • Non integral flood light with separate control gear
  • Epoxy powder coated painting
  • Relamping from front side
  • E40 Porcelain Lamp holder base
  • Earthing terminal
  • Prewired upto terminal block IP 65 protection

    • Reflector

  • Electrochemically brightened and high purity anodised aluminium reflector for efficient light distribution.
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C D
    VL/AFL/NI-1500W MH 1 1500 380 / 400/ 415 520 515 590 295
    VL/AFL/NI-2000W MH 1 2000 380 / 400/ 415 520 515 590 295
    Lamp Enclosed Rated

    Dimensions (mm) +/- 5%
