LED High Bay Light

TASSEL NEO HIGHBAY

LED Panel Edgelit

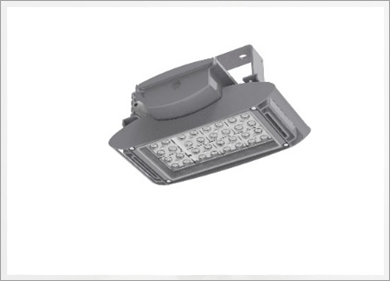

Tassel Neo HB 1LC
LED Panel Edgelit

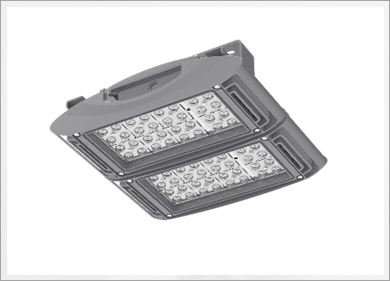

Tassel Neo HB 2LC
LED Panel Edgelit

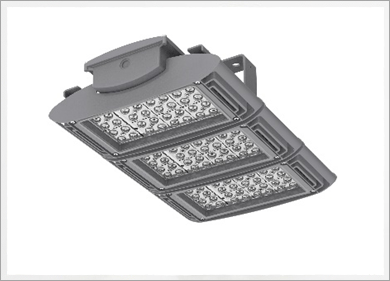

Tassel Neo HB 3LC
LED Panel Edgelit

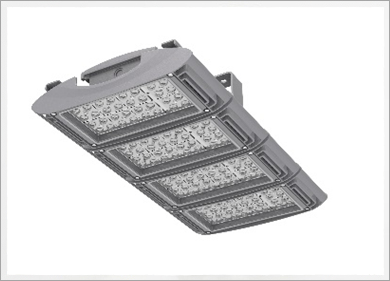

Tassel Neo HB 4LC
LED Panel Edgelit

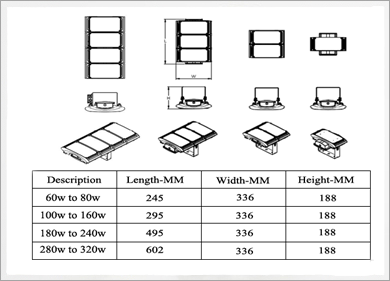

Dimension Details
LED Panel Edgelit

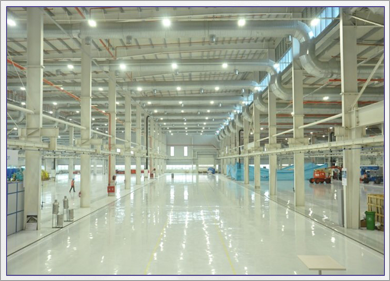

Application

Description

Tassel Neo Highbay is superior industrial Highbay with high optical & thermal performance. Innovative & modular design luminaire for industrial applications, provides significant energy savings and utmost safety during operation. Wide range of optical distributions for different industrial applications. Tassel Neo highbay is designed with high safety & reliability standards.

Specifications & Features

  • Tassel Neo Highbay is offered in 60W-320W .
  • The luminaire has modular construction in 1/2/3/4 modules depending on wattage.
  • With system efficacy>100 LPW, providing >50% energy savings over traditional lighting fixtures. * Also available in higher LPW versions up to 130 LPW.
  • Elegantly designed light and gear compartment made in pressure die cast and powder coated for excellent finish and aesthetics.
  • Injection molded transparent diffuser is made of special Polycarbonate - tough enough to handle vandalism or mis-handling
  • Sustained IP66 rating of the complete luminaire, ensured by using special type of oleo-phobic and hydro-phobic Micro Vent (rated at IP69)
  • Uniform thermal distribution of the LED light engine, providing superior lumen maintenance (L70 > 50k hours)*
  • Carefully designed fins (in terms of overall surface area, and specific air-flow mechanisms) allow efficient thermal management, providing long life and enhanced performance
  • Air gap to allow efficient air breathing between hotter light compartment and sensitive gear compartment.
  • UL approved diffuser is made of FR grade material providing superior safety with high level of transmission delivers effective light output
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.
  • Secondary lens on LED offers a wide variety of light distribution to suite appropriate industrial applications
  • Provision of safety wire rope which will help while installation.
  • Matching IP66 rated injection molded junction box as a standard offering.
  • The heat sensitive gear compartment is strategically isolated thermally from the heat generating light compartment, enhancing the longevity and reliability of the driver and hence the entire luminaire.
  • Sturdy CRCA cradle will ensure rigid mounting in industrial environment.
  • Fins are designed is such a way to minimize accumulation of dust or industrial waste on the top surface of fixture.
  • Luminaire is designed to withstand external vibrations (2G) offering reliable operation.

    • Installation & Maintenance

  • Direct Mounting suitable forM8 Bolt (2 No) with pitch of 150mm
  • Eye Bolt Mounting with M10 Bolt (1No)
  • Conduit Mounting with suitable pipe Ø 20mm
  • Suspension Mounting with pitch of 160mm

    • Applications

  • Assembly Area
  • Production Area
  • Industrial Sheds
  • Warehouses
  • Workshops & Heavy Industries

    • Compliance

  • IP66
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage CCT Mains Current THD Power Factor Weight (Kg)
    VLI3025 VLIS/308/60/57/00/90D/NGR/V0 60W 5700K 0.26 Amp < 10% >0.95 5.5
    VLI3027 VLIS/308/80/57/00/90D/NGR/V0 80W 5700K 0.35 Amp < 10% >0.95 5.5
    VLI3029 VLIS/309/120/57/00/60D/NGR/V0 120W 5700K 0.52 Amp < 10% >0.95 7
    VLI3031 VLIS/309/140/57/00/60D/NGR/V0 140W 5700K 0.61 Amp < 10% >0.95 7
    VLI3033 VLIS/309/160/57/00/60D/NGR/V0 160W 5700K 0.7 Amp < 10% >0.95 7
    VLI3035 VLIS/310/180/57/00/60D/NGR/V0 180W 5700K 0.78 Amp < 10% >0.95 12
    VLI3037 VLIS/310/200/57/00/60D/NGR/V0 200W 5700K 0.87 Amp < 10% >0.95 12
    VLI3039 VLIS/310/180/57/00/25D/NGR/V0 180W 5700K 0.78 Amp < 10% >0.95 12
    VLI3041 VLIS/310/200/57/00/25D/NGR/V0 200W 5700K 0.87 Amp < 10% >0.95 12
    VLI3043 VLIS/310/220/57/00/25D/NGR/V0 220W 5700K 0.96 Amp < 10% >0.95 12
    VLI3044 VLIS/310/240/57/00/25D/NGR/V0 240W 5700K 1.05 Amp < 10% >0.95 12
    VLI3047 VLIS/311/280/57/00/25D/NGR/V0 280W 5700K 1.22 Amp < 10% >0.95 15
    VLI3049 VLIS/311/320/57/00/25D/NGR/V0 320 W 5700K 1.4 Amp < 10% >0.95 15
    Lamp Enclosed Rated
