ASTER

LED Panel Edgelit
Aster
 LED Panel Edgelit

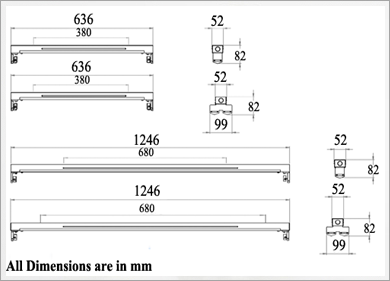

Dimension Details
LED Panel Edgelit

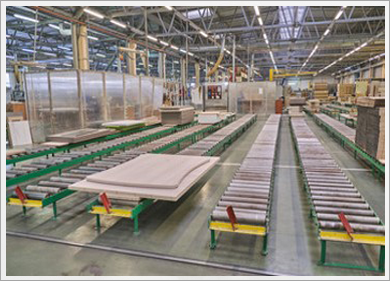

Application

Description

Venture make ASTER LED Batten offers wide range of applications ideally suits industrial lighting, commercial space, storage and retail sector. These LED fixtures are rugged and provide crisp, clean visual alternative in comparison with conventional luminaire. The effect is striking and modern that brings architectural appeal to any space.

Specifications & Features

  • Carefully designed sleek CRCA channel with endcaps, finished in powder coated white color.
  • With CRCA cover it provides additional protection against dust and industrial waste.
  • Push fit type lamp holders to directly fix 4 feet LED retrofit lamps.
  • Pre wired housing comes with 3 way, 10A PBT connector.
  • Properly labelled to locate powered end of lamp holder for ease in installation.
  • Offered in below lengths to cater standard lamp dimensions.
    1. 1. 2 Lamp 2 feet version
    2. 2. 2 Lamp 4 feet version
    3. 3. 1 Lamp 2 feet version
    4. 4. 1 Lamp 4 feet version
  • Installation & Maintenance

  • Cable entry is through back of the luminaire through 19mm knock out hole.
  • Suitable for direct mounting with the help of 2 screws at a pitch of 680mm for 4 feet and 380mm for 2 feet fixture.
  • Applications

  • Textile Industries
  • Retail stores
  • Office space
  • Food Industries
  • Shopping malls
  • Storage area
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLI3009 VLIS/302/1x2FT/NWH/V0 NA NA NA NA NA 0.35kg
    VLI3008 VLIS/302/2x2FT/NWH/V0 NA NA NA NA NA 0.35kg
    VLI3011 VLIS/302/1x4FT/NWH/V0 NA NA NA NA NA 0.6kg
    VLI3010 VLIS/302/2x4FT/NWH/V0 NA NA NA NA NA 0.6kg
    Lamp Enclosed Rated

    *Note : Use with proper T-8 lamp .
