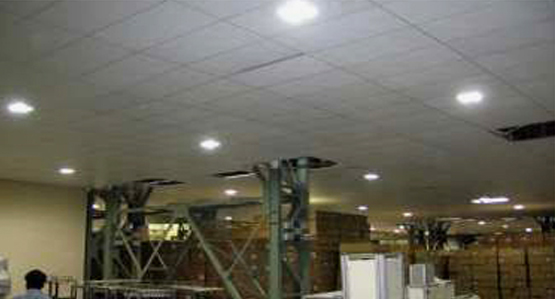

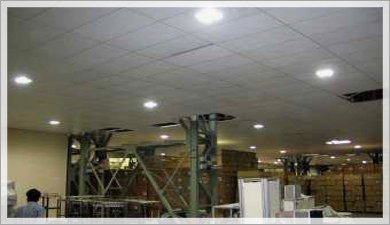

Applications
Lowbay Industrial
Storage areas
Loading bays
Parking / Sport halls
Warehouse
Features

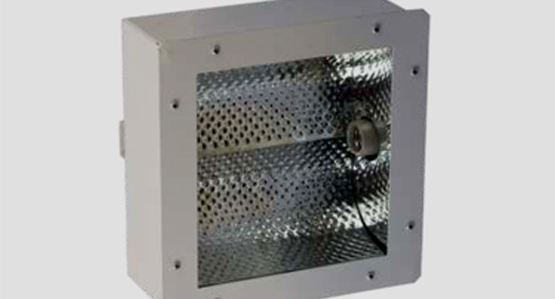

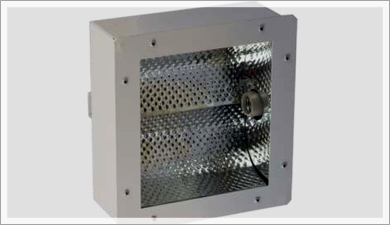

CRCA sheet housing, heat resistant & toughened glass cover, Copper wound ballast, PF correction capacitor, Electronic ignitor, prewired upto terminal block.
Epoxy Powder coated painting
Stainless steel toggles & M.S. bracket for suspension
E27 Porcelain Lamp holder base
Earthing terminal
Relamping from front side
Recess mounting suitable for false ceiling
Reflector
Electrochemically brightened and high purity anodized aluminium hammered finish reflector for excellent light distribution
| Part No |
Lamp Type |
Lamp Qty |
Wattage |
Nominal Rated Voltage |
A |
B |
C |
D |
E |
F |
G |
H |
| VL/MBI-50W |
MH |
1 |
50 |
220 / 240 |
285 |
277 |
123 |
225 |
70 |
115 |
155 |
30 |
| VL/MBI-70W |
MH / SV |
1 |
70 |
220 / 240 |
285 |
277 |
123 |
225 |
70 |
115 |
155 |
30 |
| VL/MBI-100W |
MH |
1 |
100 |
220 / 240 |
285 |
277 |
123 |
225 |
70 |
115 |
155 |
30 |
| VL/MBI-150W |
MH / SV |
1 |
150 |
220 / 240 |
285 |
277 |
123 |
225 |
70 |
115 |
155 |
30 |

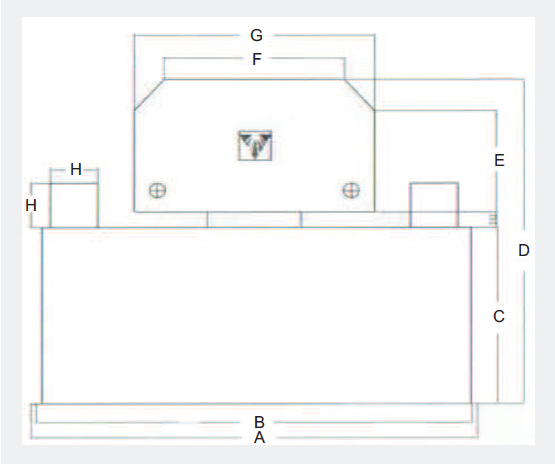

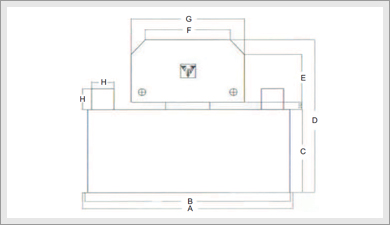

Dimensions (mm) +/- 5%
