VENTURE LED LIGHTING

Indoor Commercial Lighting

THYME ROUND SUSPENDED

LED Panel Edgelit

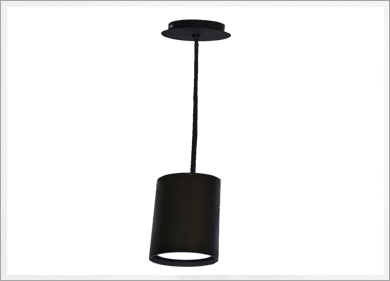

Thyme Round Suspended
 LED Panel Edgelit

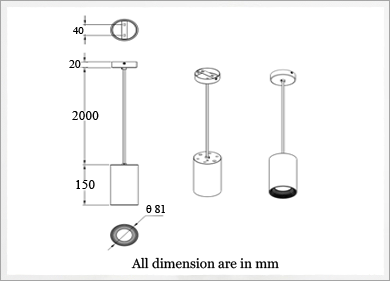

Dimension Details
 LED Panel Edgelit

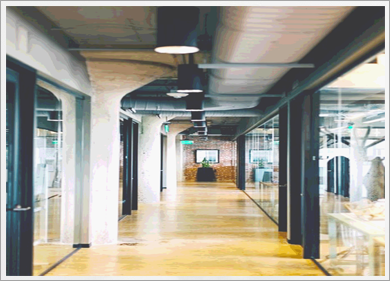

Application

Description

Thyme round suspended is inspiration lighting luminaire which offers perfect illumination with better performance blending in with a wide range of applications ranging from hospitality ,retail, commerical spaces & residential projects.

Specifications & Features

  • Thyme Round is available in wattage range of 12W
  • Suspended cylindrical shape luminaire made of aluminum.
  • Luminaire is available in CCT 5700K & 4000K with CRI>80.
  • The luminaire is available in black color.
  • Best in class COB LED module for better high output efficiency
  • Uniform, high quality light, with good color rendering capabilities reveals true color of your surrounding space.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Clear Safety glass for better protection.
  • Provided with constant current LED driver.
  • In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 2kV .
  • The luminaire is rated for Efficacy 100 LPW, Pf >0.9 , THD <15%.
  • Installation & Maintenance

  • Fix the given mounting clamp to the ceiling surface ,using ribbed anchor screw system.
  • Complete the LEN connection ,mount the luminaire to the clamp and fix two screws.
  • Driver replacement, un- thread the luminaire , and replace the driver .
  • Applications

  • Office Lighting
  • Commercial Buildings
  • Retail Stores
  • Shopping Malls
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLC1239 VLCP/131/12/57/00/NWH/V0 12W 5700K 0.052Amps < 15% >0.95 0.6kg
    VLC1240 VLCP/131/12/40/00/NWH/V0 12W 4000K 0.052Amps < 15% >0.95 0.6kg
    Lamp Enclosed Rated
