LED Lighting

LED Street Light

PDF Version

Luma HVAC

Extruded Aluminum housing and die cast Aluminum end frames with highly efficient optical grade Polymer acrylic lenses

50% energy saving Vis a Vis Conventional HID Street light

Unique driverless system for high reliability.

Integrated LED Chips and components in module with PF > 95%

Innovative AC voltage technology

Equipped with 10KV Surge suppression Protection

Wide voltage range 180 - 270V

Color Rendering Index (CRI) >= 75

Working ambient temperature -25°C to + 50°C

Rated Life 50,000Hrs (Ta= 30°C @ L70)

High intensity of illumination with 60°x 135°view angle

Uniform diffuse & excellent glare control

Flicker free instant start electronic operation

Electric wave & radio interference free

Without mercury,UV & IR radiation

Class I Electric Strength.

IP 65 Ingress Protection

Secondary Road.

Highways

Walkways

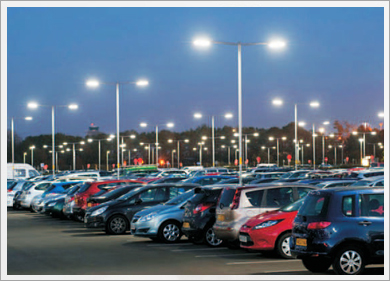

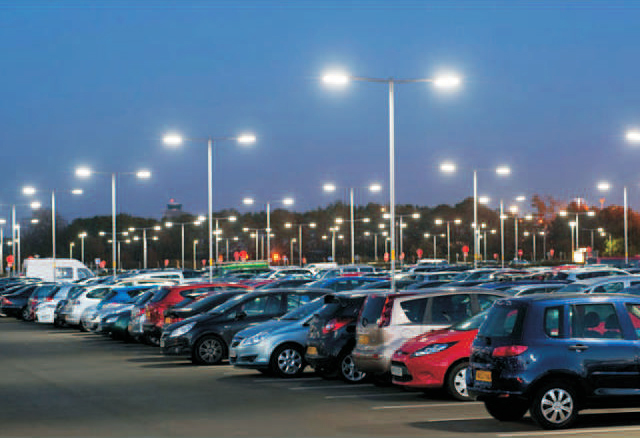

Parking lot

Security Lighting

Roundabouts & Road junctions

Residential & Industrial areas

Side entry mounting suitable for Pole dia max 60mm

Power supply should be disconnected before service

Product ID / Ordering Code	Product Description	Wattage(W)	Nominal Voltage(V)	Mains Current(A)	CCT (K)	Lumen (lm)
VL/STL-316-LED03057	Luma HVAC LED Street Light 30/CW IP 65	30	230	0.135	5700	2700
VL/STL-316-LED04557	Luma HVAC LED Street Light 45/CW IP 65	45	230	0.205	5700	4050
VL/STL-616-LED06057	Luma HVAC LED Street Light 60/CW IP 65	60	230	0.274	5700	6000
VL/STL-616-LED09057	Luma HVAC LED Street Light 90/CW IP 65	90	230	0.410	5700	9000
VL/STL-616-LED10057	Luma HVAC LED Street Light 100/CW IP 65	100	230	0.455	5700	9500
VL/STL-616-LED12057	Luma HVAC LED Street Light 120/CW IP 65	120	230	0.540	5700	12000
VL/STL-616-LED15057	Luma HVAC LED Street Light 150/CW IP 65	150	230	0.680	5700	14000
VL/STL-616-LED18057	Luma HVAC LED Street Light 180/CW IP 65	180	230	0.820	5700	18000
VL/STL-616-LED20057	Luma HVAC LED Street Light 200/CW IP 65	200	230	0.915	5700	19000
