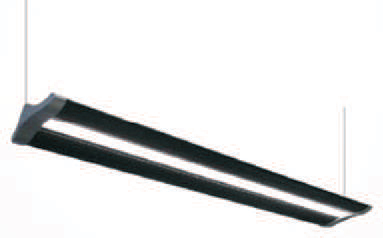

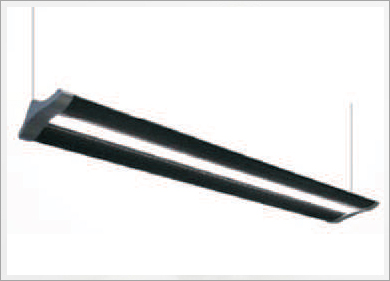

Suspended LED Luminaire
I-Deco
Specifications & Features
Integrated injection thermo-bio plastic housing frame with highly efficient PC Opal Diffuser.
High energy saving Vis a Vis Traditional fluorescent-50% compared to CFL/FTL luminaires.
Direct and Indirect lighting offer more comfortable atomsphere
Constant current driver with PF > 95%
More than 85% driver efficiency with < 20% Current THD
Equipped with 2.5KV Surge Protection
Wide operating voltage 100 - 265Vac
Color Rendering Index (CRI) > 80
Working ambient temperature -20°C to + 45°C
Rated Life 30,000Hrs (Ta= 30°C @ L70)
High intensity of illumination with 100°beam angle
Uniform diffuse & excellent glare control
Instant start without flash & humming
Electric wave & radio interference free
Without mercury,UV & IR radiation
IP 20 Ingress Protection

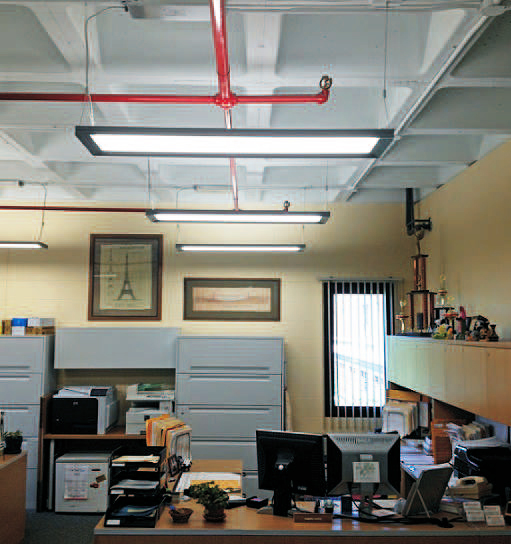

Applications
Offices
Institutional
Factories
Store
Engineering lab
Conference hall
Hospitality
Installation & Maintenance
Suspension cables with remote driver enclosure
Power Supply should be disconnected before service
Technical & Ordering Information
| Product ID / Ordering Code |
Product Description |
Wattage(W) |
Nominal Voltage(V) |
Mains Current(A) |
CCT (K) |
Lumen (lm) |
| VL/ITL-600-LED05440 |
I-Deco Suspended LED Luminaire 54/NW L1200 |
54 |
230 |
0.247 |
4000 |
3900 |
| VL/ITL-600-LED05465 |
I-Deco Suspended LED Luminaire 54/CW L1200 |
54 |
230 |
0.247 |
6500 |
4200 |
