BLUE HILL 1

LED Panel Edgelit
Blue Hill 1
LED Panel Edgelit

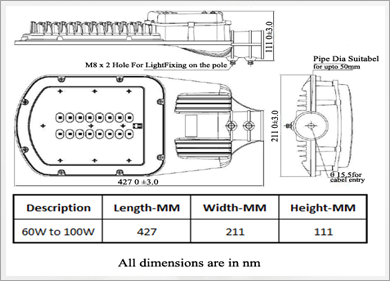

Dimension Details
LED Panel Edgelit

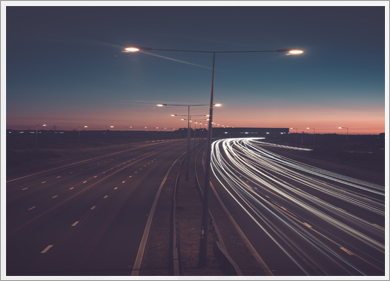

Application

Description

LED street lighting play a vital role in ensuring smooth traffic flow and safety of the residents, drivers, riders, walkers & pedestrians. Thus Venture Street Lighting luminaire is curated for reduce energy consumption, project ecosystem , proper road lighting rhythm with blend of versatility ,durability, energy savings &high safety .Blue Hill 1 Street Light series is a high performance grade luminaire to achieve desired distribution for road lighting applications. This street light series is high on energy savings and well suits the need for road and city infra project requirements.

Specifications & Features

  • Options are available in 60W to 100W with best in class Lumen per watt– more light for less cost. Available with efficacy 100LPW.
  • Elegantly designed pressure die cast aluminum housing body with optimal heat sink for better thermal dissipation.
  • Tempered Protective Toughened glass, thermal shock and impact resistant fixed to the housing with SS screws.
  • Extended fins for better thermal management resulting in maintenance free long service
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K and CRI > 70 for brighter outdoor application.
  • Secondary lens used for asymmetric wide distribution, ideal for street light application
  • Use of PG 09 cable gland allows air tight wire entry to housing.
  • In-built electrical protections like over voltage, short circuit, over load, miss wiring , surge protection of min 4kV with electrical class I rating for additional safety precautions .
  • The driver is isolated potted with min 4KV surge protection & external 10 KV surge can be provided
  • Complete assembly with LED, driver and accessories pre-wired upto the terminal block.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.

    • Installation & Maintenance

  • Compatible for pole mounting with pole outer diameter upto 50mm.
  • Fixture can be mounted with help of M8 bolts (2 no's) made of Stainless Steel.
  • Wiring through open 3 poles wires.

    • Applications

  • Expressways
  • Highways and Overhead roads
  • Industrial main roads
  • City major & minor roads

    • Compliance

  • IP 66
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLR4057 VLRS/411/60/57/00/NBK/V0 60W 5700K 0.26 Amps < 10% >0.95 2.6kg
    VLR4058 VLRS/411/70/57/00/NBK/V0 70W 5700K 0.307 Amps < 10% >0.95 2.6kg
    VLR4059 VLRS/411/80/57/00/NBK/V0 80W 5700K 0.35 Amps < 10% >0.95 2.6kg
    VLR4060 VLRS/411/90/57/00/NBK/V0 90W 5700K 0.395 Amps < 10% >0.95 2.6kg
    VLR4061 VLRS/411/100/57/00/NBK/V0 100W 5700K 0.439 Amps < 10% >0.95 2.6kg
    Lamp Enclosed Rated
