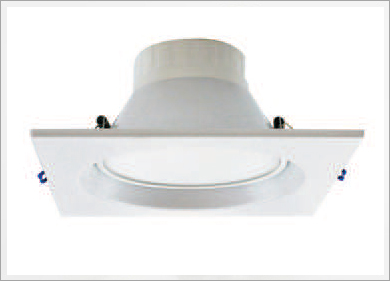

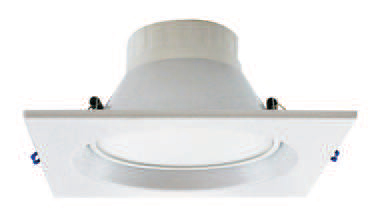

Integrity Square

Integrity Square
Integrity Square
Integrity Square

Specifications & Features

  • Die cast Aluminum housing with highly efficient PMMA Diffuser.
  • HHigh energy saving Vis a Vis Traditional fluorescent-60% compared to CFL / PLC Luminaires
  • Inbuilt constant current driver with > 95% power factor
  • More than 85% driver efficiency with < 15% Current THD
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) >= 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 110°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection

    • Applications

  • Office space

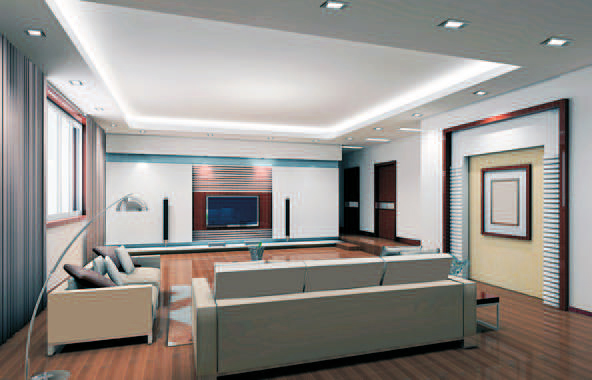

  • Residential Building
  • Institutional Building
  • Educational Institute
  • Hospitals
  • Retail Stores
  • Hotels

    • Installation & Maintenance

  • Feasible for Recess mounting
  • Suitable for POP & Gypsum False Ceiling
  • Power Supply should be disconnected before service

    • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current (A) CCT (K) Lumen (lm)
    VL/DNL-506-LED00965 Integrity Sq LED Downlight 09/ CW L145 9 230 0.042 6500 810
    VL/DNL-506-LED01565 Integrity Sq LED Downlight 15/ CW L190 15 230 0.070 6500 1250
    VL/DNL-506-LED01865 Integrity Sq LED Downlight 18/ CW L240 18 230 0.085 6500 1650
    Lamp Enclosed Rated

    * xx Also available in 3000K & 4000K CCTs
