THYME SQUARE SUSPENDED

LED Panel Edgelit

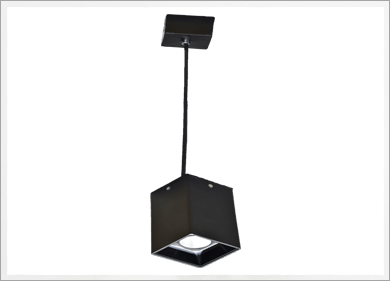

Thyme Square Suspended
LED Panel Edgelit

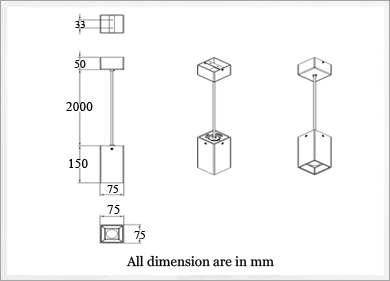

Dimension Details
LED Panel Edgelit

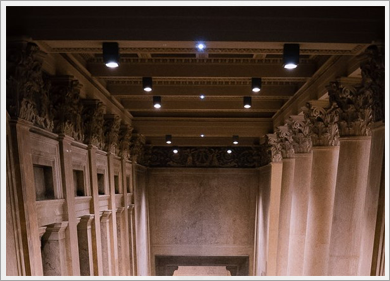

Application

Description

Thyme square suspended is minimalist design luminaire with the sense of style and aesthetic of the luminaire makes it a popular choice. This is COB type suspended luminaire which gains prominence for use in office, commerical buildings, residence & retail applications. It is designed to minimize glare and create clean sightlines.The luminaire has the elegance to enhance and illuminate objects or its architectural elements.

Specifications & Features

  • Thyme Square is available in wattage range of 10W.
  • Suspended square shape luminaire made of aluminium.
  • Luminaire is available in CCT 5700K & 4000K with CRI>80.
  • The luminaire is available in black color.
  • Best in class COB LED module for better high output efficiency
  • Uniform, high quality light, with good color rendering capabilities reveals true color of your surrounding space. .
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Clear Safety glass for better protection.
  • Provided with constant current LED driver..
  • In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 2kV .
  • The luminaire is rated for Efficacy 100 LPW, Pf >0.9 , THD <15%.

    • Installation & Maintenance

  • Fix the given mounting clamp to the ceiling surface ,using ribbed anchor screw system.
  • Complete the LEN connection ,mount the luminaire to the clamp and fix two screws .
  • Driver replacement , remove the 4 screws from the Luminaire and replace .

    • Applications

  • Office Lighting
  • Commercial Buildings s
  • Retail Stores
  • Shopping Malls

    • Compliance

  • IP 20
  • Class II

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLC1241 VLCP/132/10/57/00/NWH/V0 12W 5700K 0.052Amps < 15% >0.95 0.965kg
    VLC1242 VLCP/132/10/40/00/NWH/V0 12W 4000K 0.052Amps < 15% >0.95 0.965kg
    Lamp Enclosed Rated
