LED Down Light

PDF Version

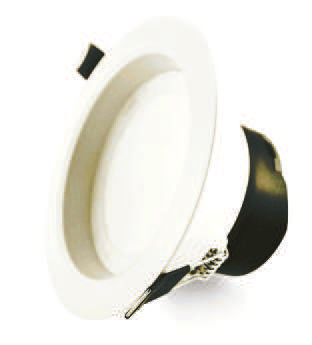

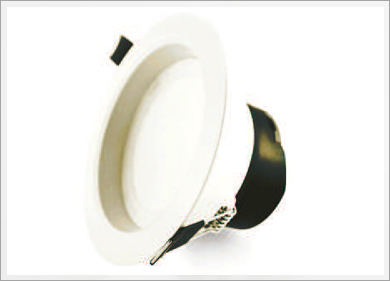

Integrity Round

Die cast Aluminum heat sink & housing with highly efficient PC frosted Diffuser.

High energy saving Vis a Vis Traditional fluorescent-60% compared to CFL / PLC Luminaires

Inbuilt constant current driver

More than 85% driver efficiency

Wide operating voltage 100 - 277Vac

Color Rendering Index (CRI) >= 80

Working ambient temperature -20°C to + 45°C

Rated Life 50,000Hrs (Ta= 30°C @ L70)

High intensity of illumination with 120°beam angle

Uniform diffuse & excellent glare control

Instant start without flash & humming

Electric wave & radio interference free

Without mercury,UV & IR radiation

IP 20 Ingress Protection

Office space

Residential Building

Institutional Building

Educational Institute

Hospitals

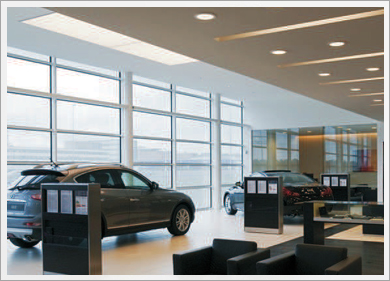

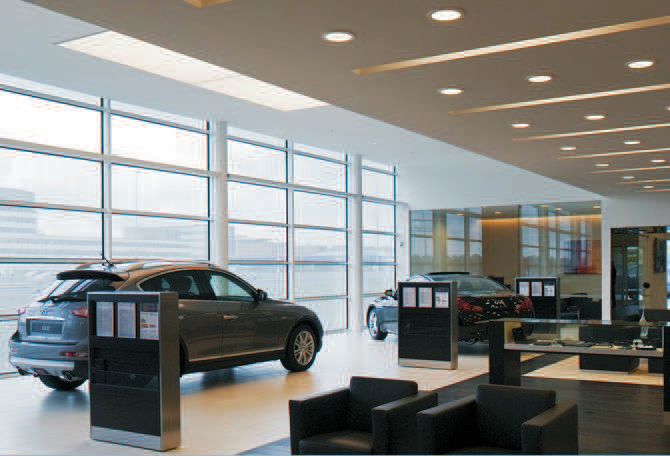

Retail Stores

Hotels

Feasible for Recess mounting

Suitable for POP & Gypsum False Ceiling

Power Supply should be disconnected before service

Product ID / Ordering Code	Product Description	Wattage(W)	Nominal Voltage(V)	Mains Current (A)	CCT (K)	Lumen (lm)
VL/DNL-504-LED00565	Integrity Rnd LED Downlight 05/ CW L090	5	230	0.04	6500	400
VL/DNL-504-LED00765	Integrity Rnd LED Downlight 07/ CW L115	7	230	0.06	6500	560
VL/DNL-504-LED00965	Integrity Rnd LED Downlight 09/ CW L115	9	230	0.07	6500	720
VL/DNL-504-LED01265	Integrity Rnd LED Downlight 12/ CW L150	12	230	0.10	6500	960
VL/DNL-504-LED01565	Integrity Rnd LED Downlight 15/ CW L190	15	230	0.07	6500	1200
VL/DNL-504-LED01857	Integrity Rnd LED Downlight 18/ CW L190	18	230	0.085	6500	1650

* XX Also available in 3000K & 4000K CCTs
