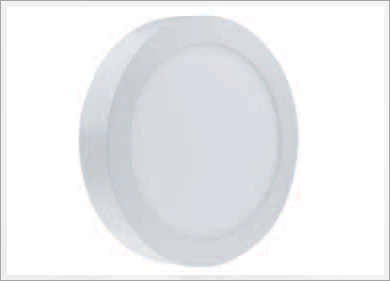

LED Ceiling Light
Noah Flush Round
Specifications & Features
Die cast aluminum housing with highly efficient PMMA / Opal Diffuser.
High energy saving Vis a Vis Traditional fluorescent-60% compare to CFL/PLC Luminaires
External constant current driver
More than 85% driver efficiency
Wide operating voltage 100 - 277Vac
Color Rendering Index (CRI) > 80
Working ambient temperature -20°C to + 45°C
Rated Life 50,000Hrs (Ta= 30°C @ L70)
High intensity of illumination with 120°beam angle
Uniform diffuse & excellent glare control
Instant start without flash & humming
Electric wave & radio interference free
Without mercury, UV & IR radiation
IP 20 Ingress Protection
Applications
Corridor
Kitchen
Hotels
Portico Lighting
Wall Lighting
Hospitality
Office
Installation & Maintenance
Feasible for Surface mounting
Power Supply should be removed from fixture during service.
Technical & Ordering Information
| Product ID / Ordering Code |
Product Description |
Wattage(W) |
Nominal Voltage(V) |
Mains Current(A) |
CCT (K) |
Lumen (lm) |
| VL/CLR-008-LED00765 |
Noah flush Rnd LED Ceiling light 07/ CW |
7 |
230 |
0.033 |
6500 |
560 |
| VL/CLR-008-LED01265 |
Noah flush Rnd LED Ceiling light 12/ CW |
12 |
230 |
0.057 |
6500 |
960 |
| VL/CLR-008-LED01565 |
Noah flush Rnd LED Ceiling light 15/ CW |
15 |
230 |
0.070 |
6500 |
1200 |
| VL/CLR-008-LED01865 |
Noah flush Rnd LED Ceiling light 18/ CW |
18 |
230 |
0.085 |
6500 |
1450 |
| VL/CLR-008-LED02465 |
Noah flush Rnd LED Ceiling light 24/ CW |
24 |
230 |
0.115 |
6500 |
1950 |
